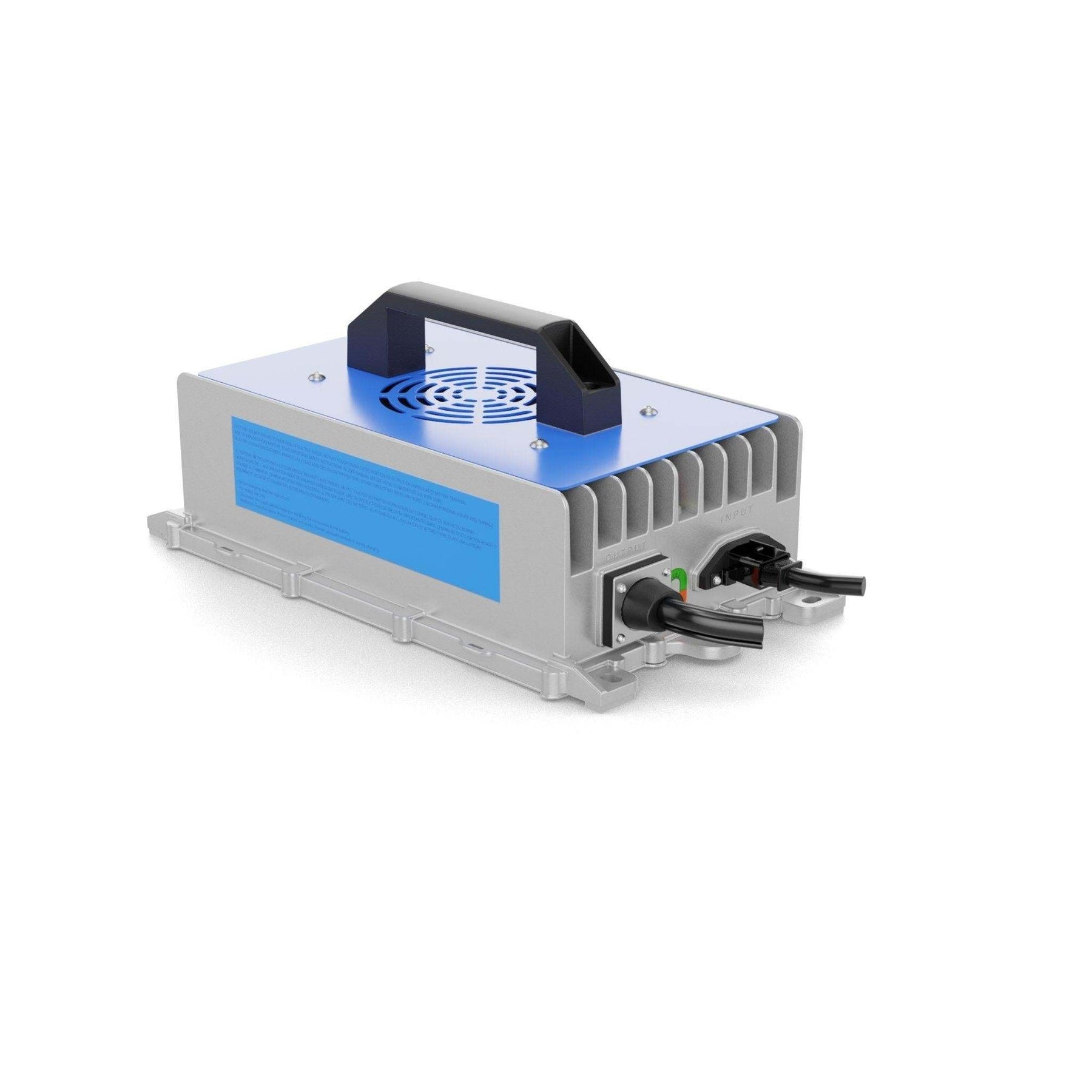

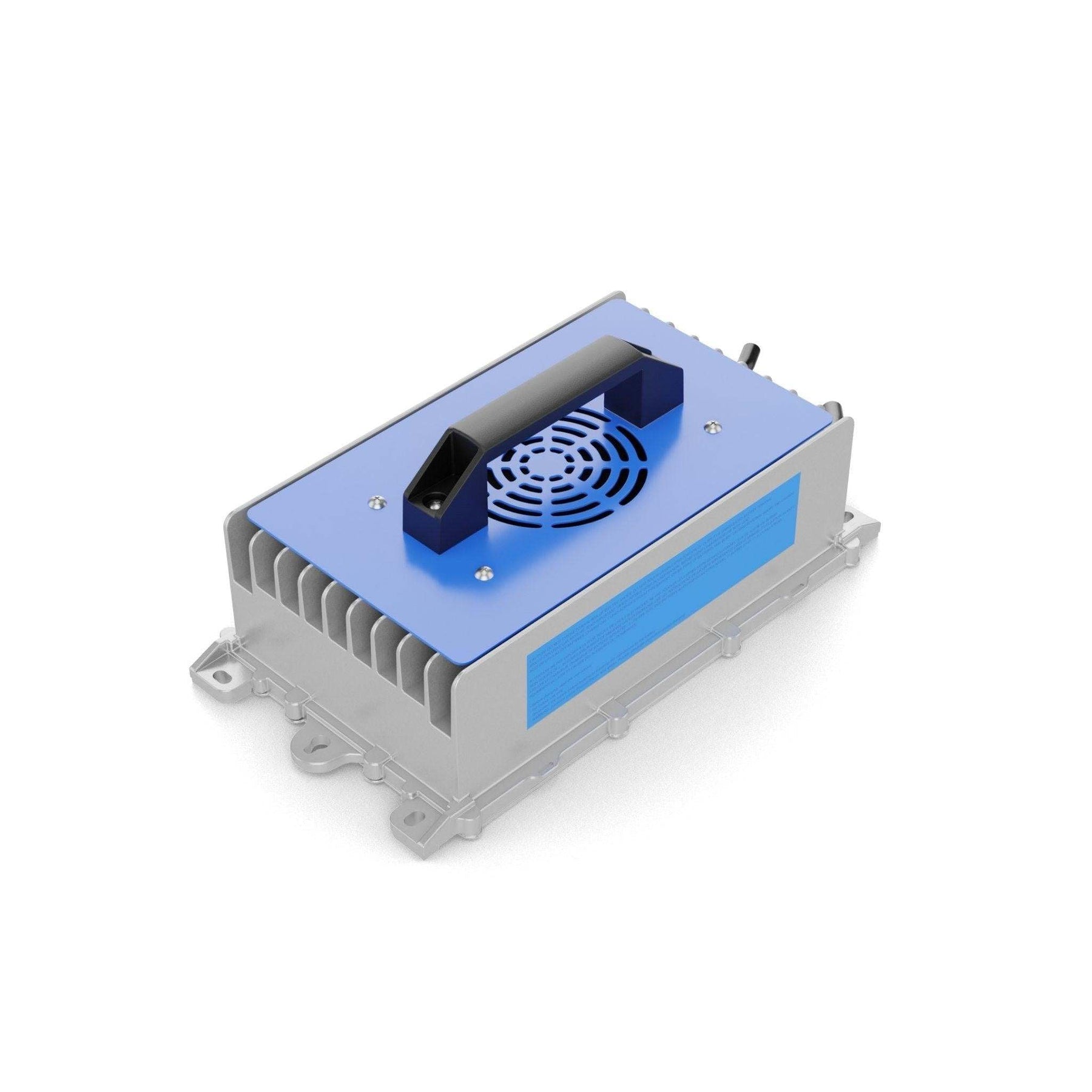

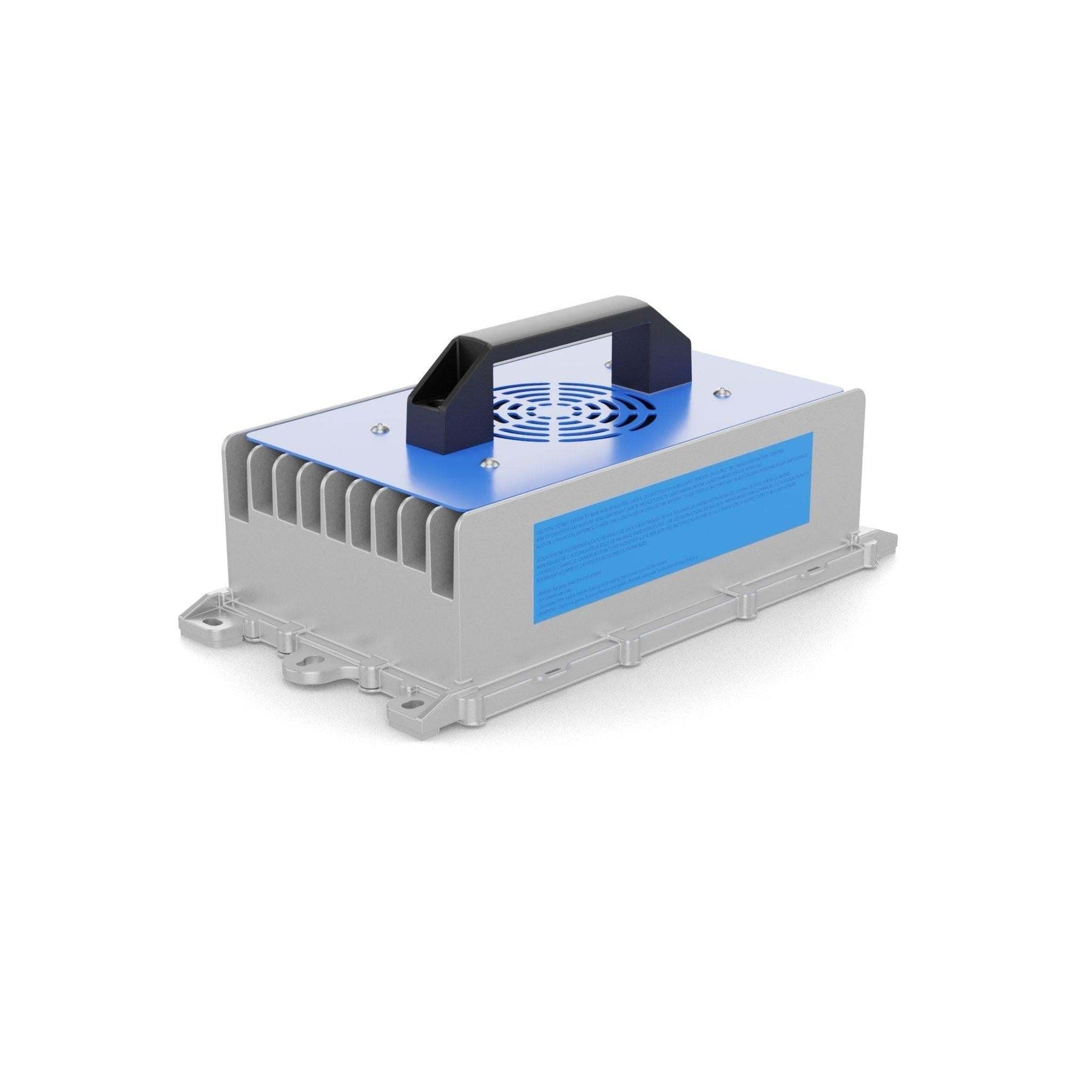

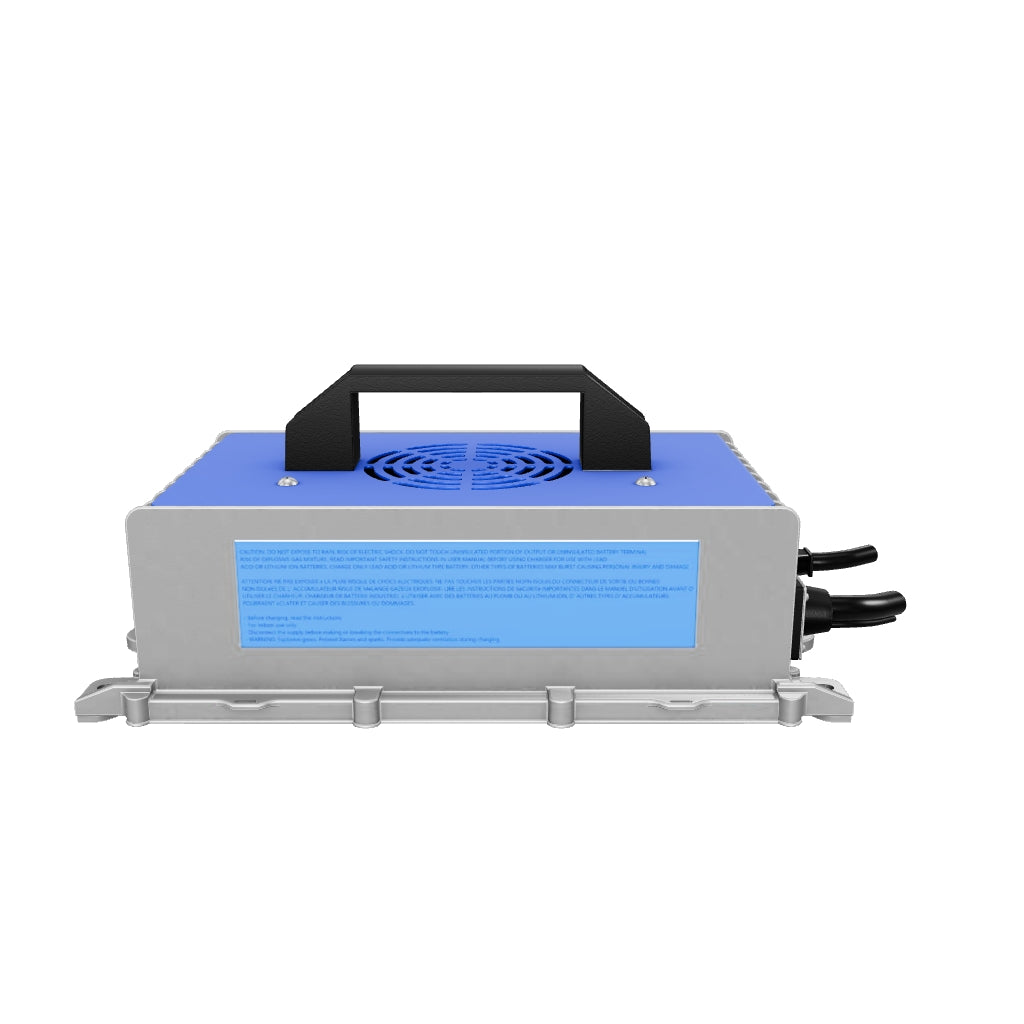

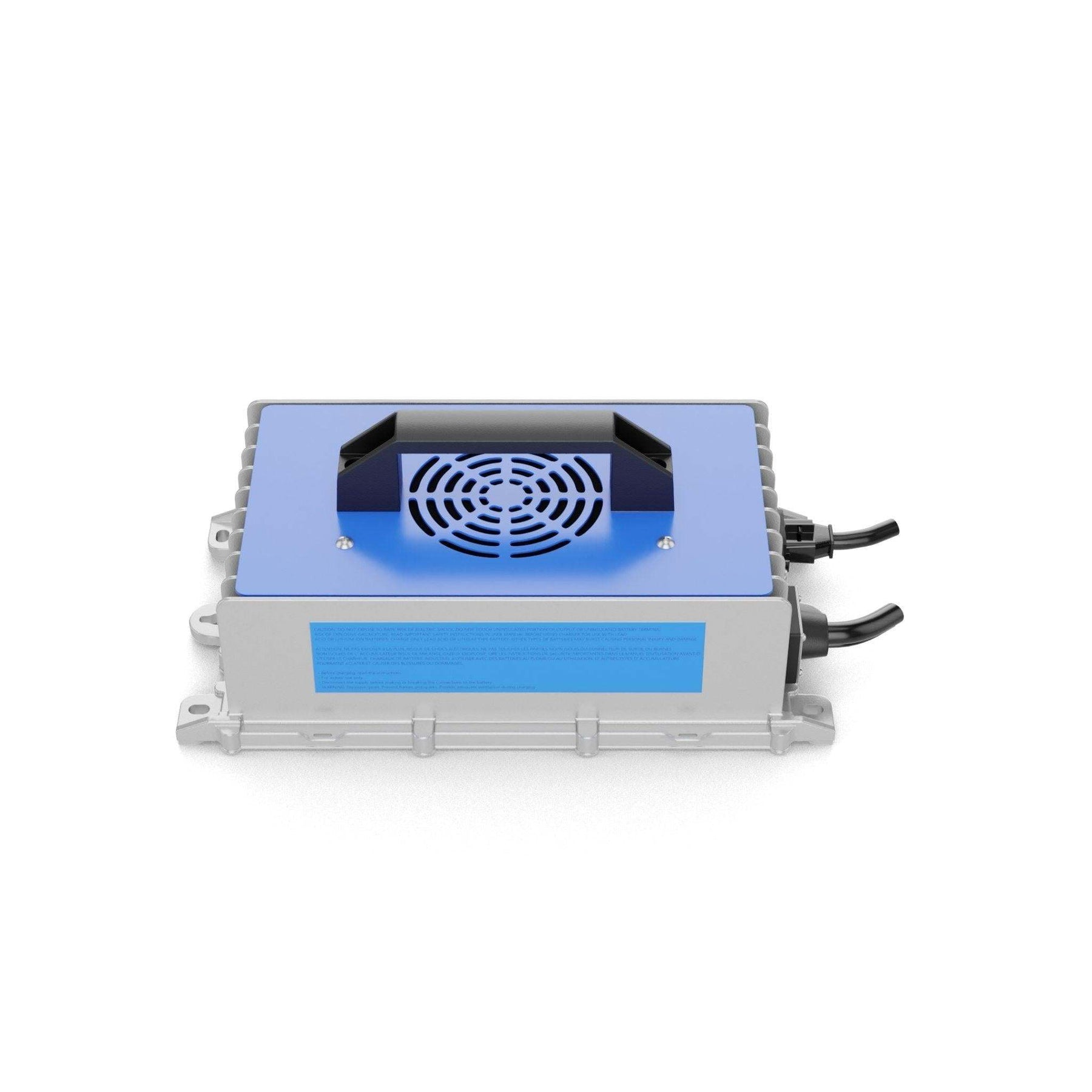

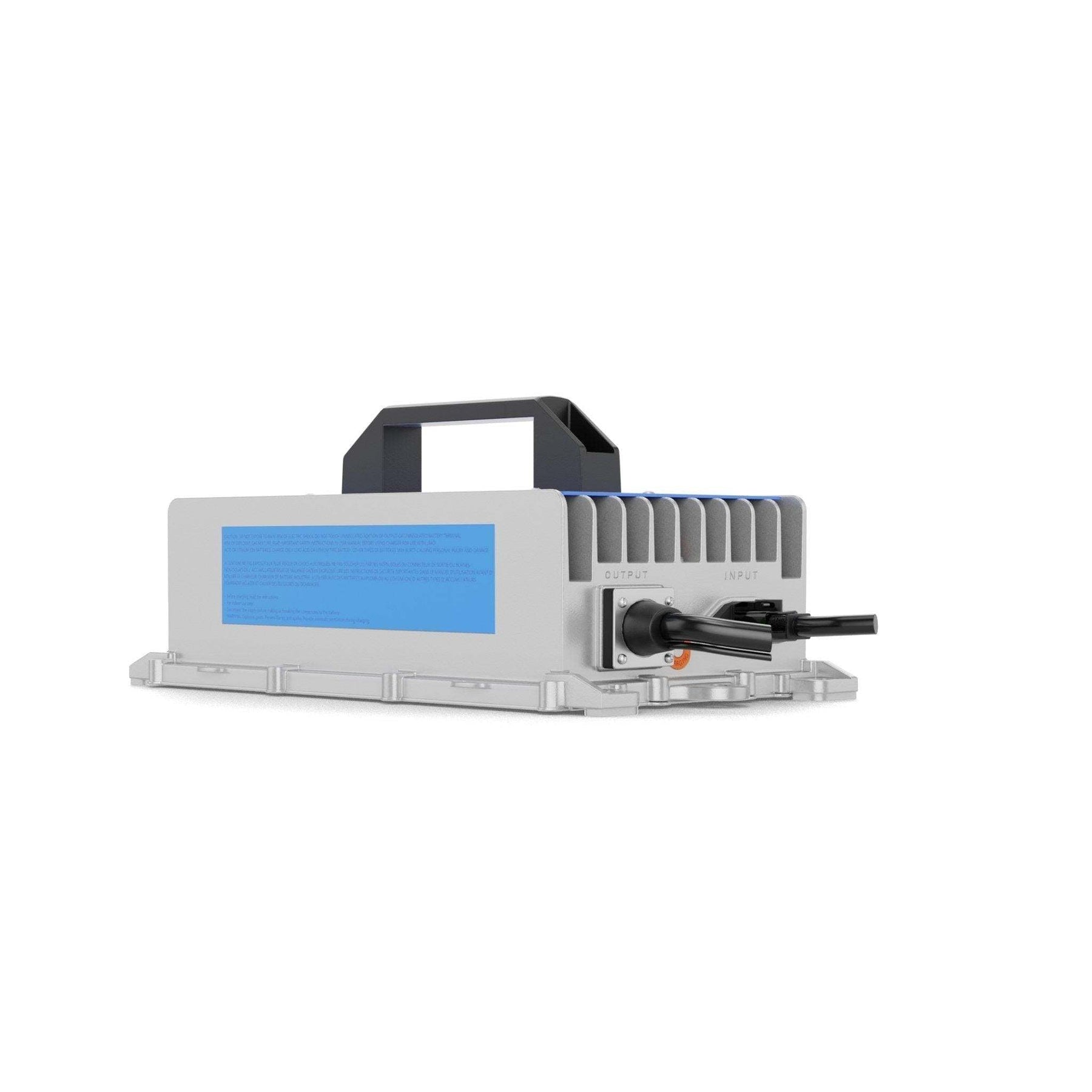

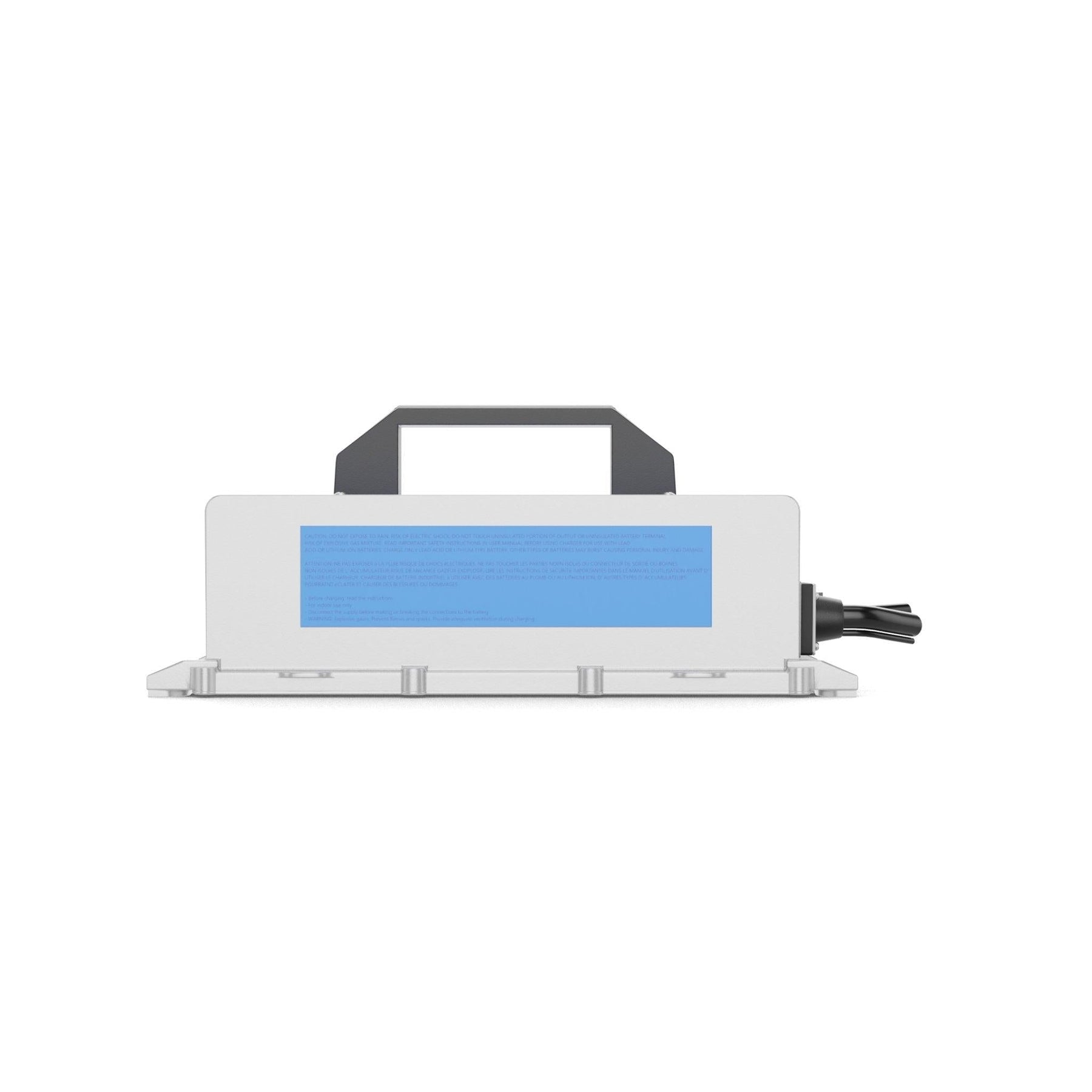

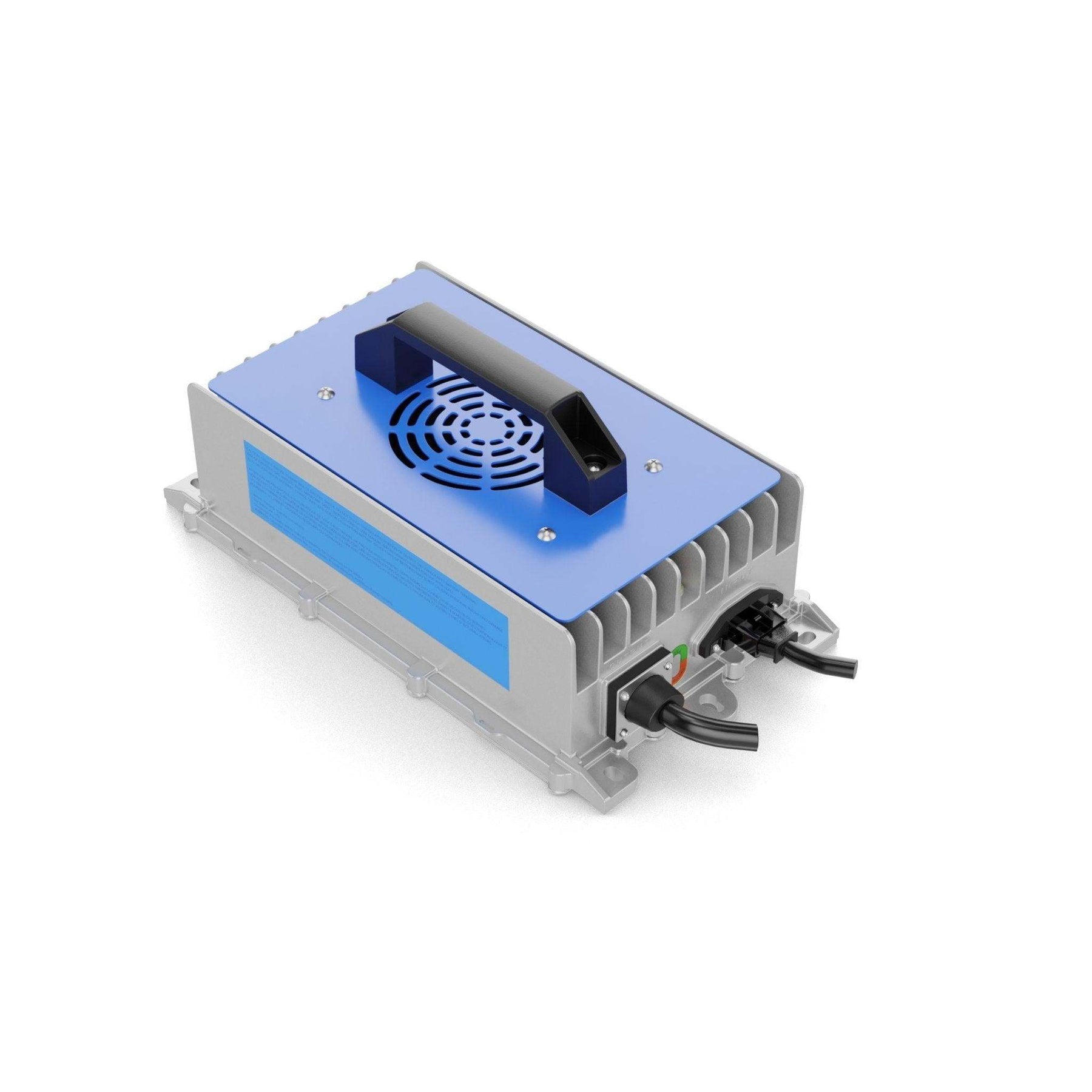

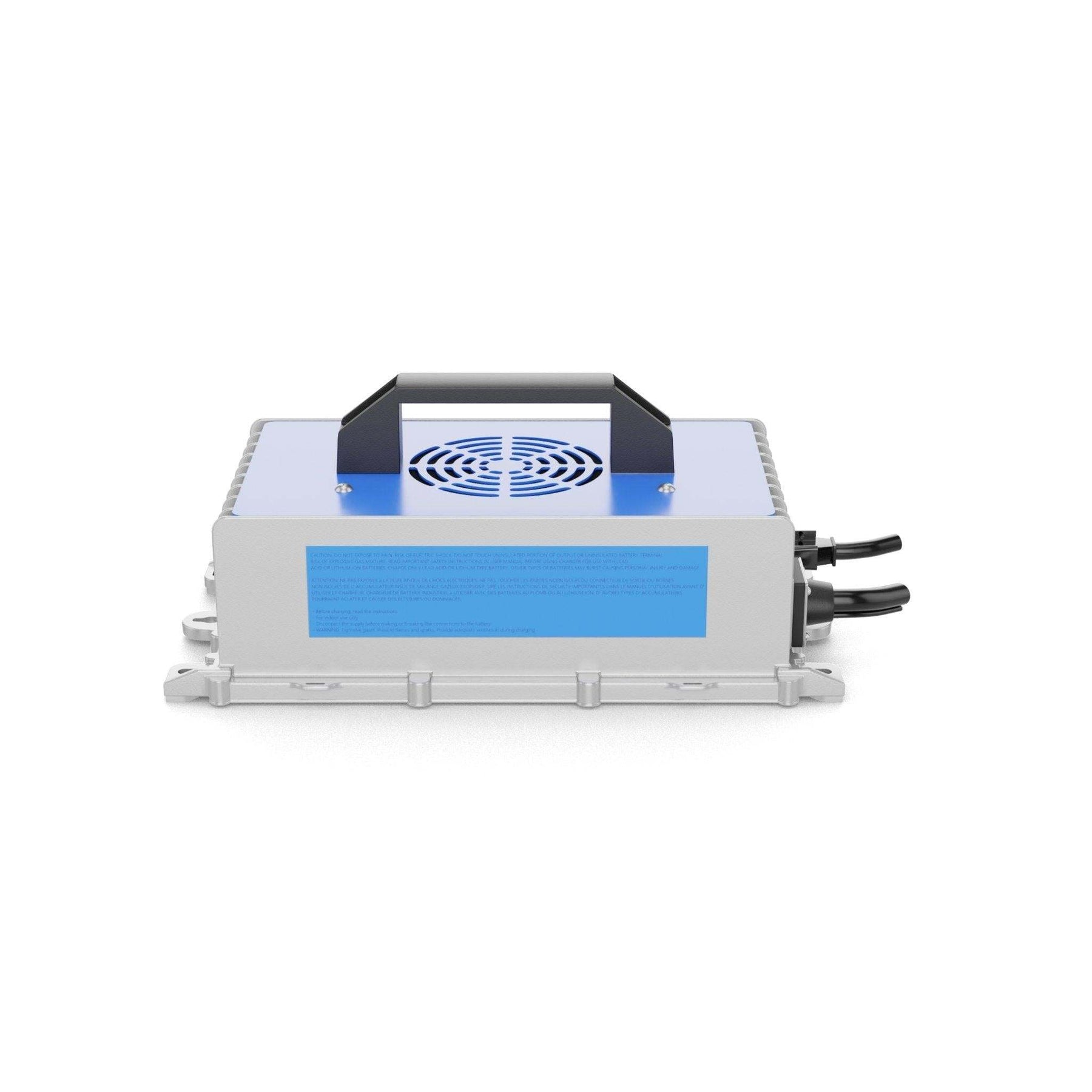

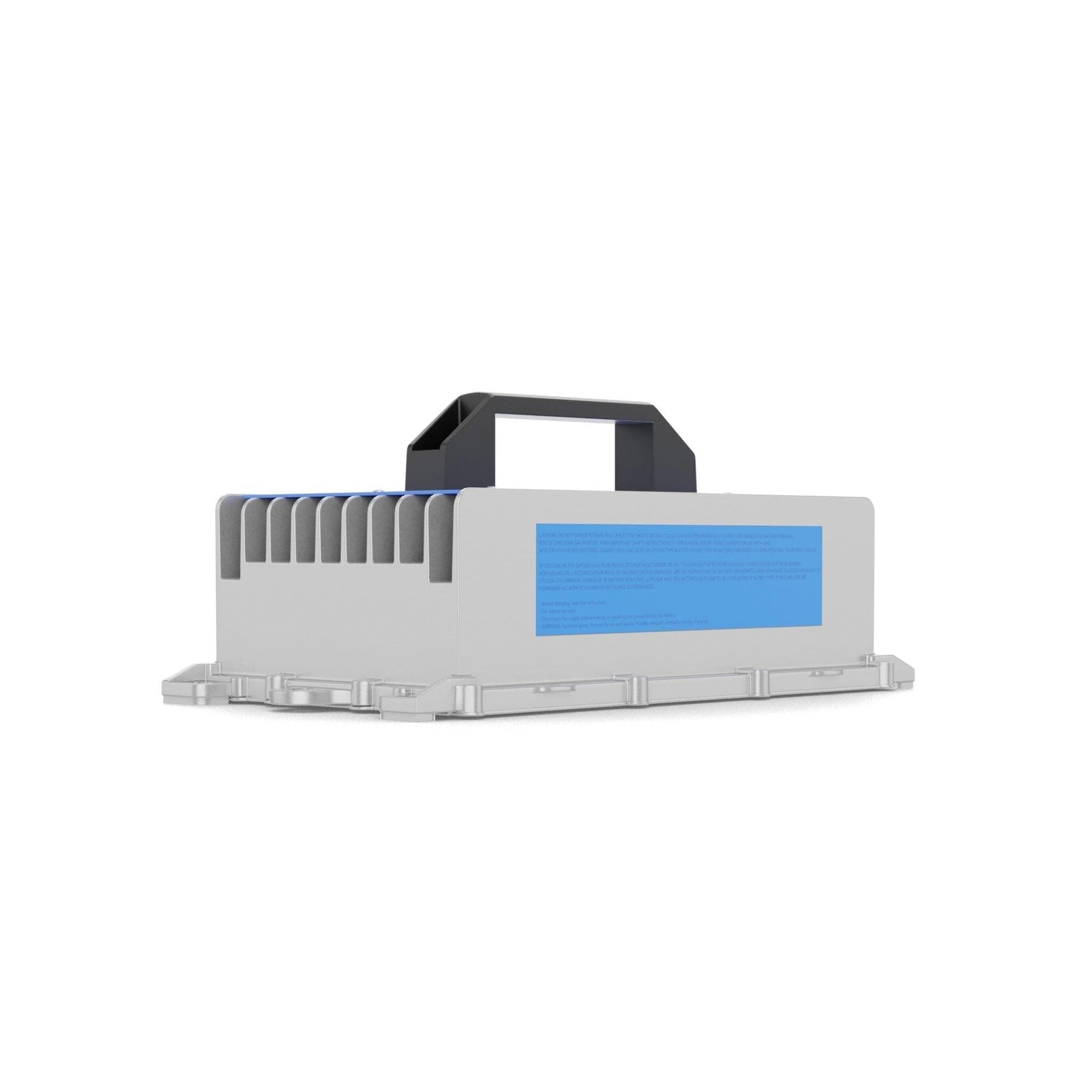

ABYSS® On-Board 36V 20A High-Precision Marine Lithium Battery Charger
AB-CRG-36V20A
- In stock, ready to ship
Safe RoHS Compliant
2-year free replacement warranty
30 day risk free money back guarantee
Fast & Free Shipping
Experience longer run times and shorter charge times when you use our onboard 36V 20A High Precision Lithium Battery Charger. meticulously engineered to deliver unparalleled efficiency, intelligence, and speed in battery charging. Designed specifically for the ABYSS® 36V 105AH Lithium Trolling Motor Battery, this charger offers users extended battery life and reliability with its built-in protection and innovative safety features.
Our charger not only promises exceptional performance and reliability but also provides the peace of mind that comes with advanced safety features. Additionally this marine battery charger offers wide range compatibility and be used for other brands of 36-Volt Lithium Batteries. Optimize your time on the water with a charger that stands at the forefront of technology, offering you the quickest, most intelligent, and efficient charging solution.
Design Features:
- IP68 Rating.
- 2-Year Warranty.
- Marine-grade construction.
- Ignition Protection.
- Overcurrent limit.
- High voltage safety.
- Reverse connection protection.
- Temperature protection.
- Full-Auto timing shutdown.
- Anti-Walking function.
- LED indicator for Charging Process.
- CAN communication (optional).
- 12V5A Auxiliary power supply (optional).
Safety:
- Short-Circuit: Yes
- Open-Circuit: Yes
- Overheating: Yes
- Overcharge: Yes
- Spark-Proof: Yes
- Reverse Polarity: Yes
Size:
- Height: 10.5 Inches (267mm)
- Width: 6 Inches (152mm)
- Depth: 3 Inches (76mm)
- Weight: 7.1 Pounds (3.2kg)
Operating Requirements:
- Line Voltage: 120V to 240V AC
- Frequency: 50Hz to 60Hz
- Operating Temperature: -4° to 104° F (-20° to 50° C)
- Storage Temperature: -22° to 140° F (-30° to 60° C)
- Relative Humidity: 0 to 95% Non-Condensing
Cord Management:
- DC Cable + Eyelet Length: 72 Inches (182cm)
- DC Cable Size: 16 AWG
- DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
- AC Cable Length: 72 Inches (182cm)
- AC Cable Size: 18 AWG
- Oil, gas, grease, water, chemical, UV, abrasion resistant
- Red = Negative, Yellow/Green = Ground, Purple = Neutral
ON-BOARD Battery Chargers
|
Product name |
3-Bank 12v/24v marine charger |
3-BANK 12v/36v MARINE CHARGER |
4-BANK 12V MARINE CHARGER |
4-BANK 12V/36V MARINE CHARGER |
36V Alternator CHARGER | 30V-90V Input to 12v 50A DC Step down converter | 36V 10A HIGH- PRECISION CHARGER | 36V 20A HIGH- PRECISION CHARGER | 24V 10A HIGH- PRECISION CHARGER | 24V 20A HIGH- PRECISION CHARGER | 24V ALTERNATOR CHARGER |
|
Model |
AB-CRG-12V24V-3B |
AB-CRG-12V36V-3B |
AB-CRG-12V-4B |
AB-CRG-12V/36V-4B |
AB-36V-DC | AB-DC-SD | AB-CRG-36V10A | AB-CRG-36V20A | AB-CRG-24V10A | AB-CRG-24V20A | AB-24V-DC |
|
Voltage |
12V/24V |
12V/36V | 12V | 12V/36V | 36V | 30V-90V | 36V | 36V | 24V | 24V | 24V |
|
Output |
2x12V/10A +24V/10A |
2x12V/10A +36V/10A | 4x12V/10A |
3x12V/10A +36V/10A |
43.8V/10A | 12V/50A DC | 36V/10A DC | 36V/20A | 24V/10A | 24V/20A | 24V |
|
Product Size
|
11.9" x 9.6" x 3.8" |
14.2" x 9.6" x 3.8" 361 x 245 x 99mm |
11.9" x 9.6" x 3.8" 304 x 245 x 99mm |
16.6" x 9.6" x 3.8" 423 x 245 x 99mm |
6" x 5" x 2" 150 x 130 x 48mm |
6" x 5" x 2" 150 x 130 x 48mm |
7.5" x 5" x 2.75" 190 x 127 x 70mm |
10.5" x 6" x 3" 267 x 152 x 76mm |
7.5" x 5" x 2.5" 190 x 127 x 63mm |
7.75" x 5" x 3" 197 x 127 x 76mm |
4.75" x 3.25" x 1.25" 121 x 82 x 32mm |
| Weight | 16.5 lbs (7.5 kg) |
19 lbs (8.6 kg) | 17 lbs (7.7 kg) | 26.8 lbs (12.1 kg) | 3.1 lbs (1.4 kg) | 3.1 lbs (1.4 kg) | 3.5 lbs (1.6 kg) | 7.1 lbs (3.2 kg) | 3.3 lbs (1.5 kg) | 3.3 lbs (1.5 kg) | .95 lbs (.43 kg) |
| Lead Length | 6' (72 in.) (183 cm) |
6' (72 in.) (183 cm) |
6' (72 in.)(183 cm) | 6' (72 in.) (183 cm) |
7 in. (17.8 cm) |
N/A | 4' (48 in.)(122 cm) |
4' (48 in.)(122 cm) | 3' (36 in.) (91.4 cm) |
3' (36 in.) (91.4 cm) | 7 in. (17.8 cm) |
|
Charging Battery Type
|
Two banks have MODE buttons to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM; The 3rd bank could charge 24V LiFePO4 Lithium Batteries |
Two banks have MODE buttons to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM; The 3rd bank could charge 36V LiFePO4 Lithium Batteries |
Each bank has one MODE button to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM |
Three banks have MODE buttons to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM; The 4th bank could charge 36V LiFePO4 Lithium Batteries | 36V LiFePO4 Batteries | 12V LiFePO4 Batteries | 36V LiFePO4 Batteries | 36V LiFePO4 Batteries | 24V LiFePO4 Batteries | 24V LiFePO4 Batteries | 24V LiFePO4 Batteries |
| FOR ALL CHARGERS (if applicable) |
|
|
LED Indicators |
Power & Battery Type & Charging Status LED Indicators |
|
Activate Function |
Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function) |
|
Full Cut-off Voltage |
14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery & 28.8V-29.4V for 24V Lithium Battery & 43.3V-44.2V for 36V Lithium Battery |
|
Cooling Type |
Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation |
|
Ingress Protection |
Filled with pure epoxy resin for high waterproof level IP67
|
|
Circuit Protection |
Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection
|
|
Working Temperature Range |
-10°C~40°C |
|
Nominal Working Temperature |
25°C |
|
Relative Humidity |
5%~95% |
All Abyss Batteries meet and exceed The American Boat & Yacht Council (ABYC) standard for lithium ion batteries. The ABYC council is an organization that develops voluntary global safety standards for the design, construction, maintenance, and repair of recreational boats.
ISO 14001:2004 Environmental Management System
Abyss Battery®, Inc manufacturing process is compliant and licensed on a international level by TÜV Rheinland for Functional Safety as a result of exposure to harsh marine environments such as vibration, impact, ignition protection, water ingress and salt spray corrosion common on pleasure craft and boats. TÜV Rheinland stands for safety and quality in virtually all areas of business and life. TÜV Rheinland’s highly qualified experts test technical systems and products around the world, support innovations in technology and business, train people in numerous professions and certify management systems according to international standards. In doing so, the independent experts generate trust in products as well as processes across global value-adding chains and the flow of commodities. Since 2006, TÜV Rheinland has been a member of the United Nations Global Compact to promote sustainability and combat corruption.
UN/DOT 38.3: Lithium Battery Transportation
All Abyss Battery®, Inc. Lithium Batteries are required to pass section 38.3 of the UN Manual of Tests and Criteria, to ensure the safety of using products for our end users and for shipping purposes. We are proud of our investment to ensure our products have been UN38.3 certified.
T1 – Altitude Simulation
This is low pressure testing that simulates unpressurized airplane space (cargo area) at 15,000 meter altitude. After storing batteries at 11.6kPa for >6 hours, these criteria shall be met: no mass loss, leaking, venting, disassembly, rupture or fire, and voltage within 10% of pre-test voltage.
T2 – Thermal Test
This test covers changes in temperature extremes from -40°C to +75°C. Batteries are stored for 6 hours at -40°C (12 hours for large cells/batteries), then 6 hours at +75°C (12 hours for large cells/batteries), for a total of 10 cycles. Testing may be performed in a single chamber or thermal shock chamber, but less than 30-minute transitions shall be used.
T3 – Vibration
This test simulates vibration during transportation. Test is a Sine Sweep: 7Hz – 200Hz – 7Hz in 15 Minutes; 12 Sweeps (3 hours); 3 mutually perpendicular axes.
T4 – Shock
This test also simulates vibration during transportation. Test is a Half-Sine pulse: 150G/6ms for small cells/batteries; 50G/11ms for large cells/batteries; 3 pulses per direction; 6 directions (+/-z, +/-x, +/-y). Same pass criteria as T1.
T5 – External Short Circuit
This test simulates an external short to the terminals of the cell or battery. At temperature of +55°C, apply short circuit (<0.1ohm) across terminals. Maintain at least an hour after sample temperature returns to +55 +/-2°C. Pass criteria are: Case temperature does not exceed +170°C and no disassembly, rupture, or fire within 6 hours of test. Fuse, current limiting circuit, and venting mechanism activation are allowable.
T6 – Impact
This test is only applicable to primary and secondary cells. For cylindrical cells >20mm diameter, it simulates impact to case of cell. For cylindrical cells <20mm diameter and all other cell constructions, it simulates crushing of a cell. Pass criteria for any type is: Case temperature does not exceed +170°C & no disassembly or fire within 6 hours of test.
T7 – Overcharge
This test is for secondary or rechargeable batteries only. It simulates an overcharge condition on a rechargeable battery: 2x the manufacturer’s recommended charge current for 24 hours. Then battery shall be monitored for 7 days for fire or disassembly.
T8 – Forced Discharge
This testing simulates a forced discharge condition for primary and secondary cells only.
