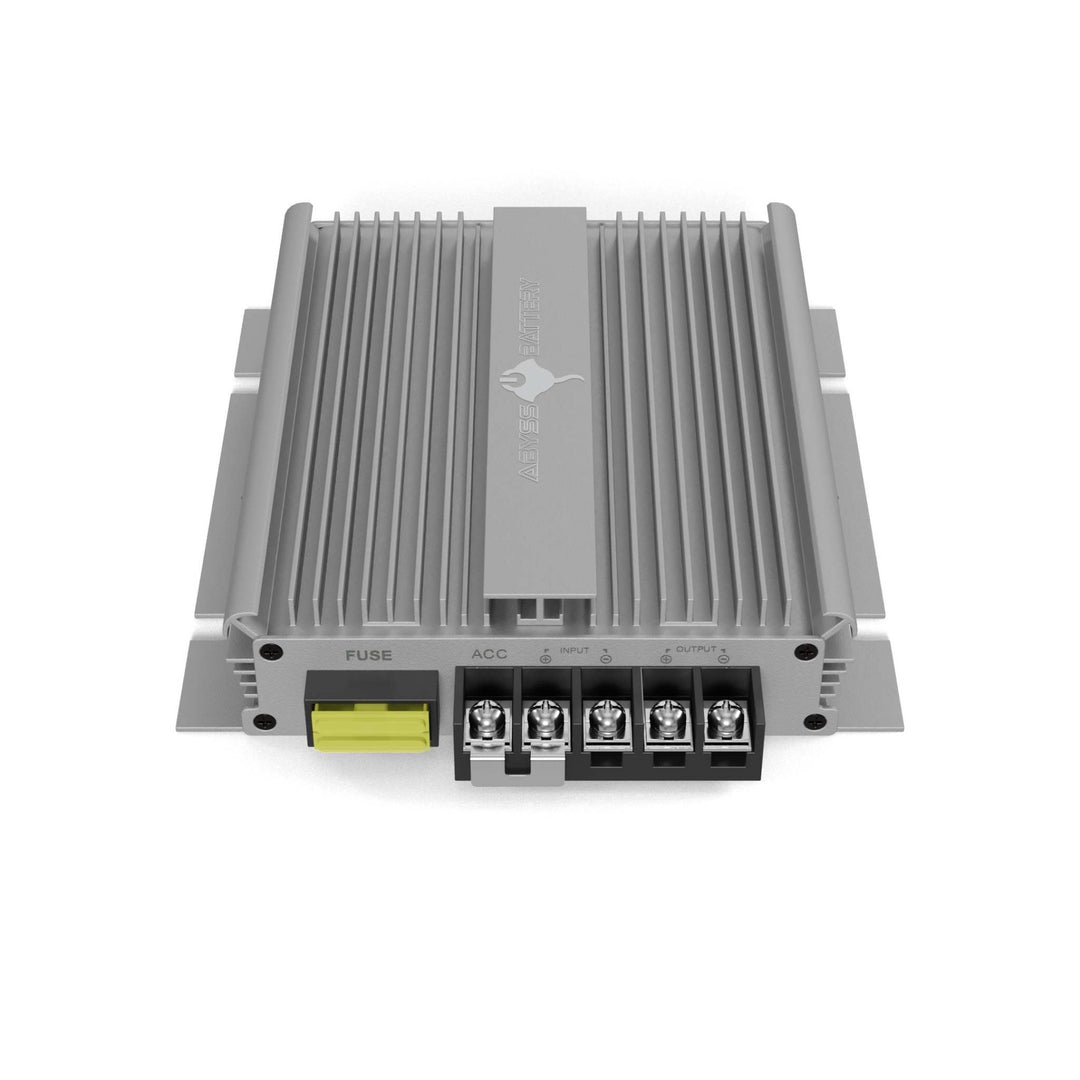

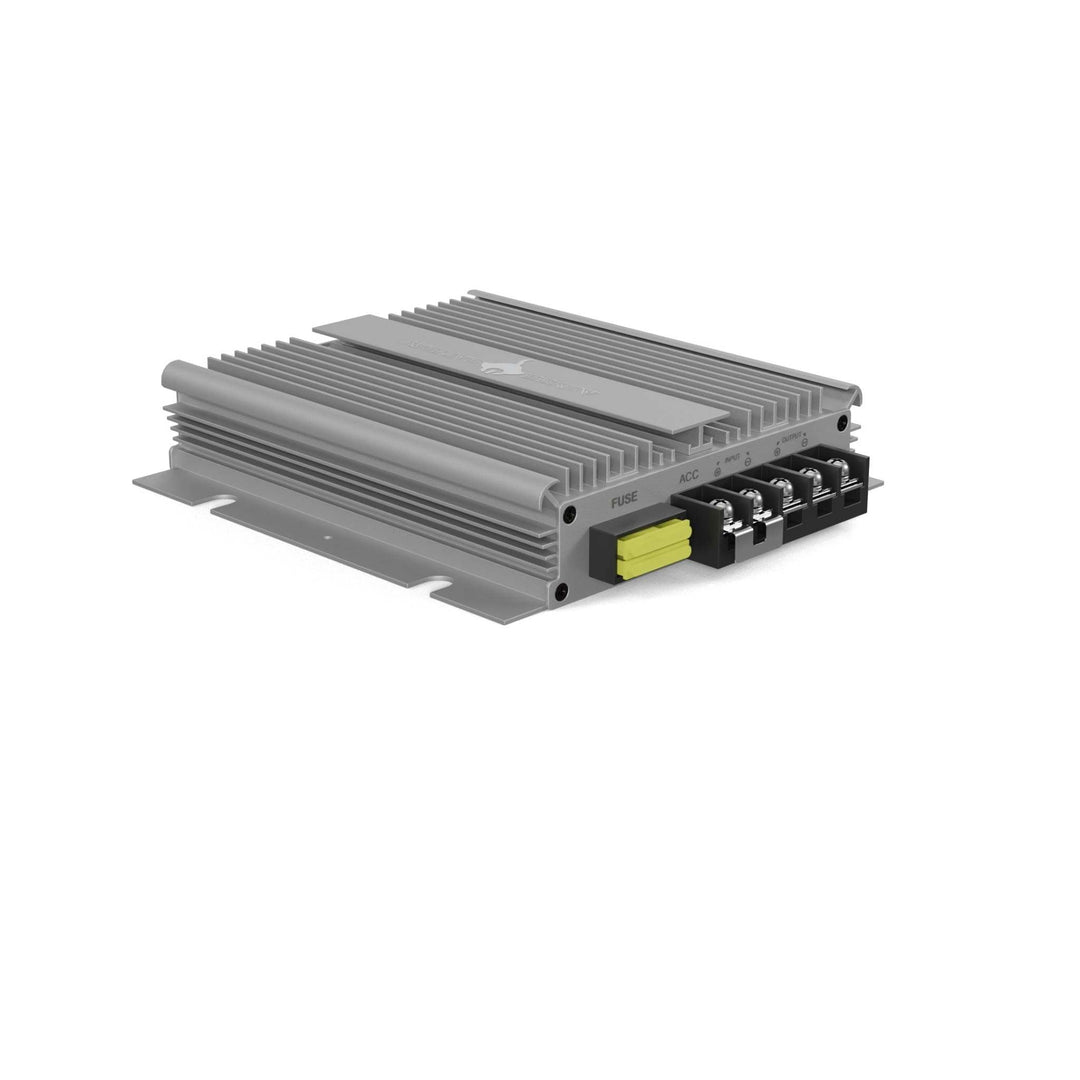

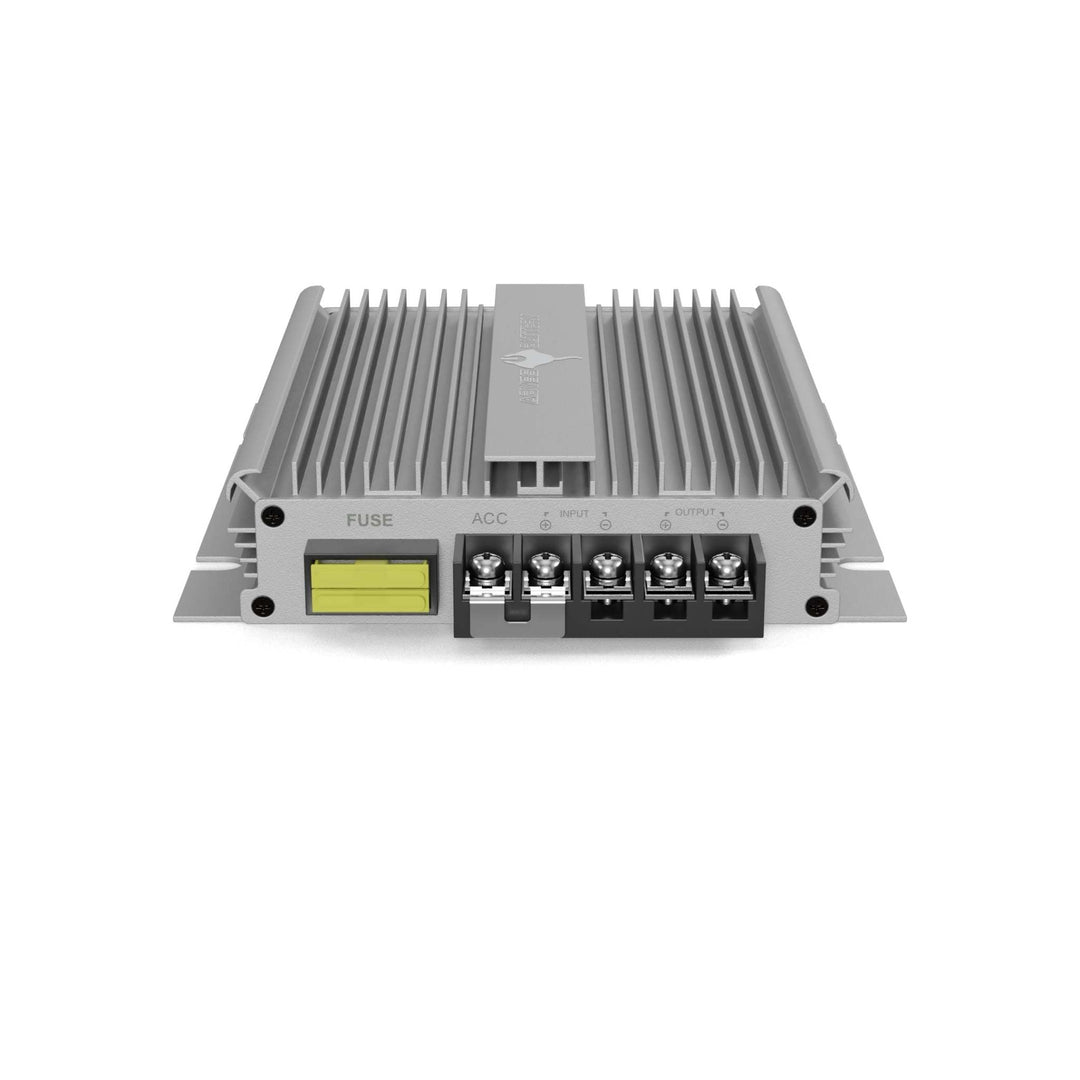

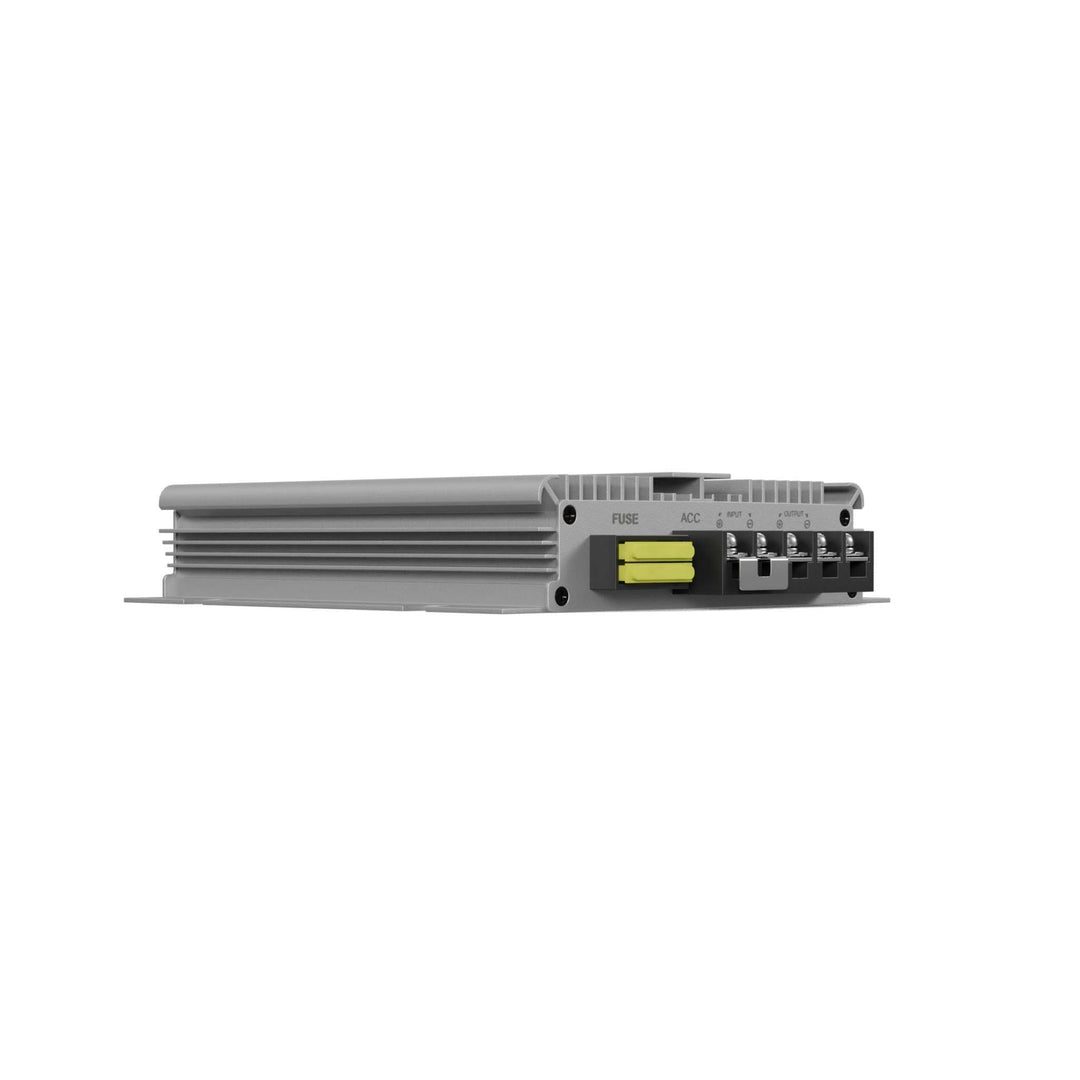

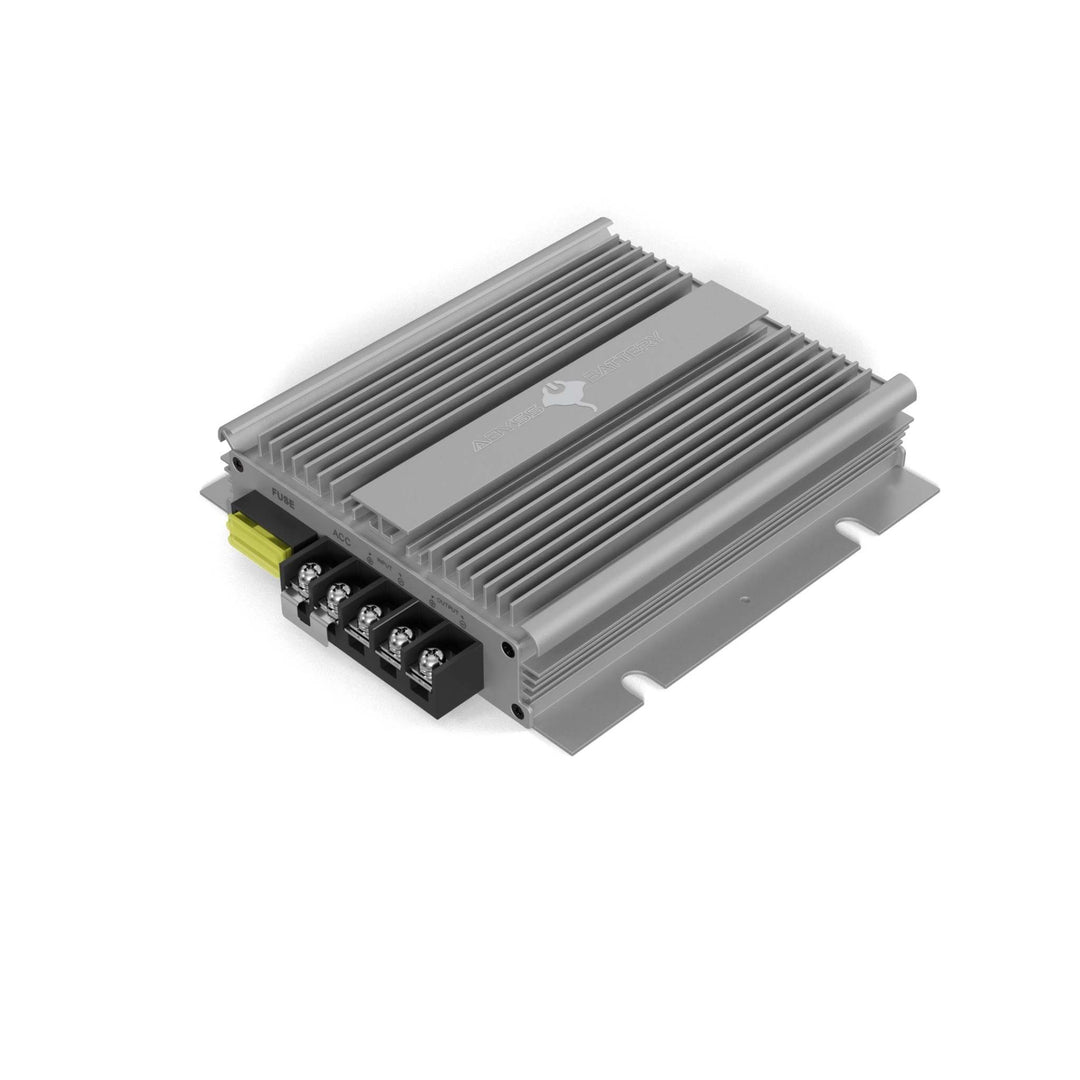

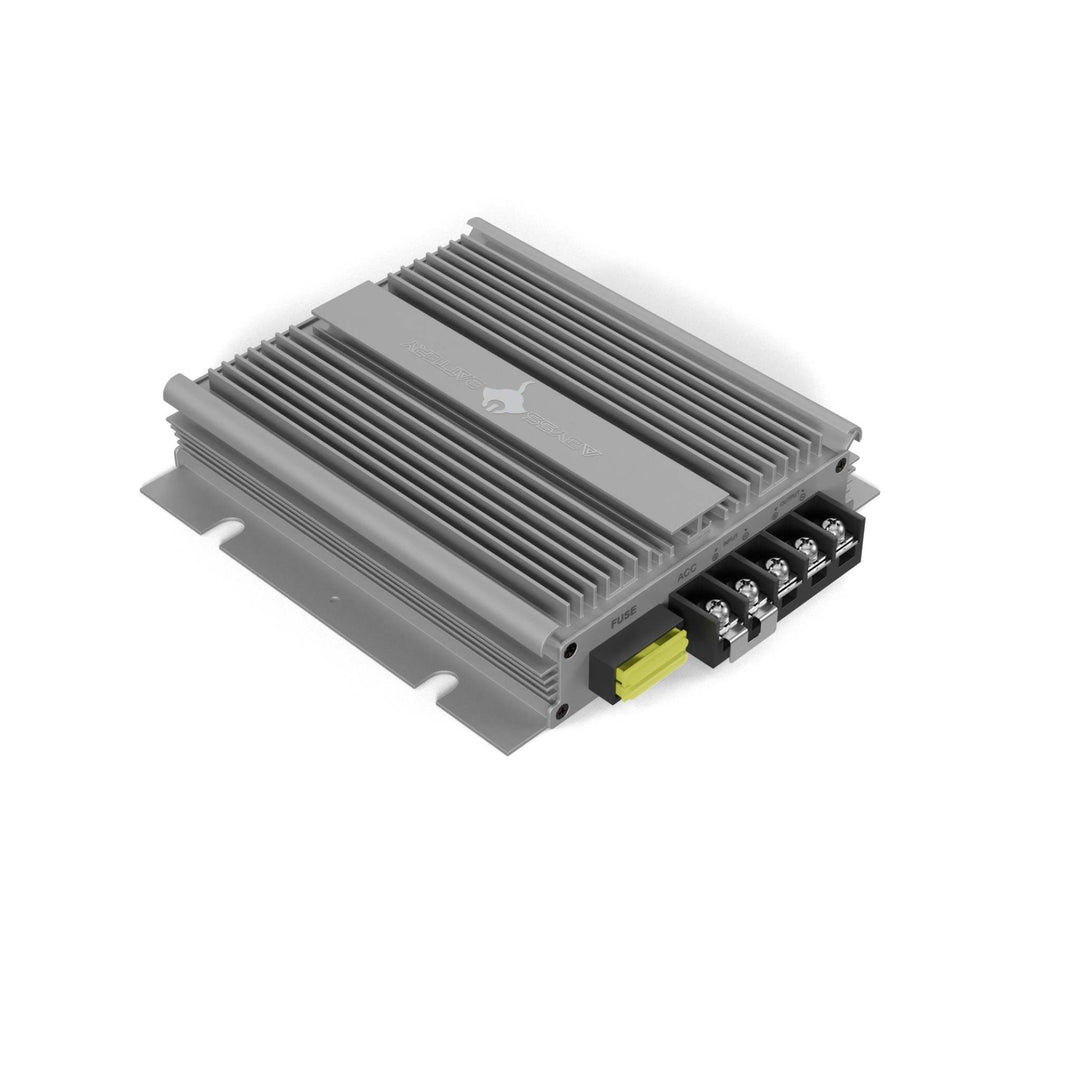

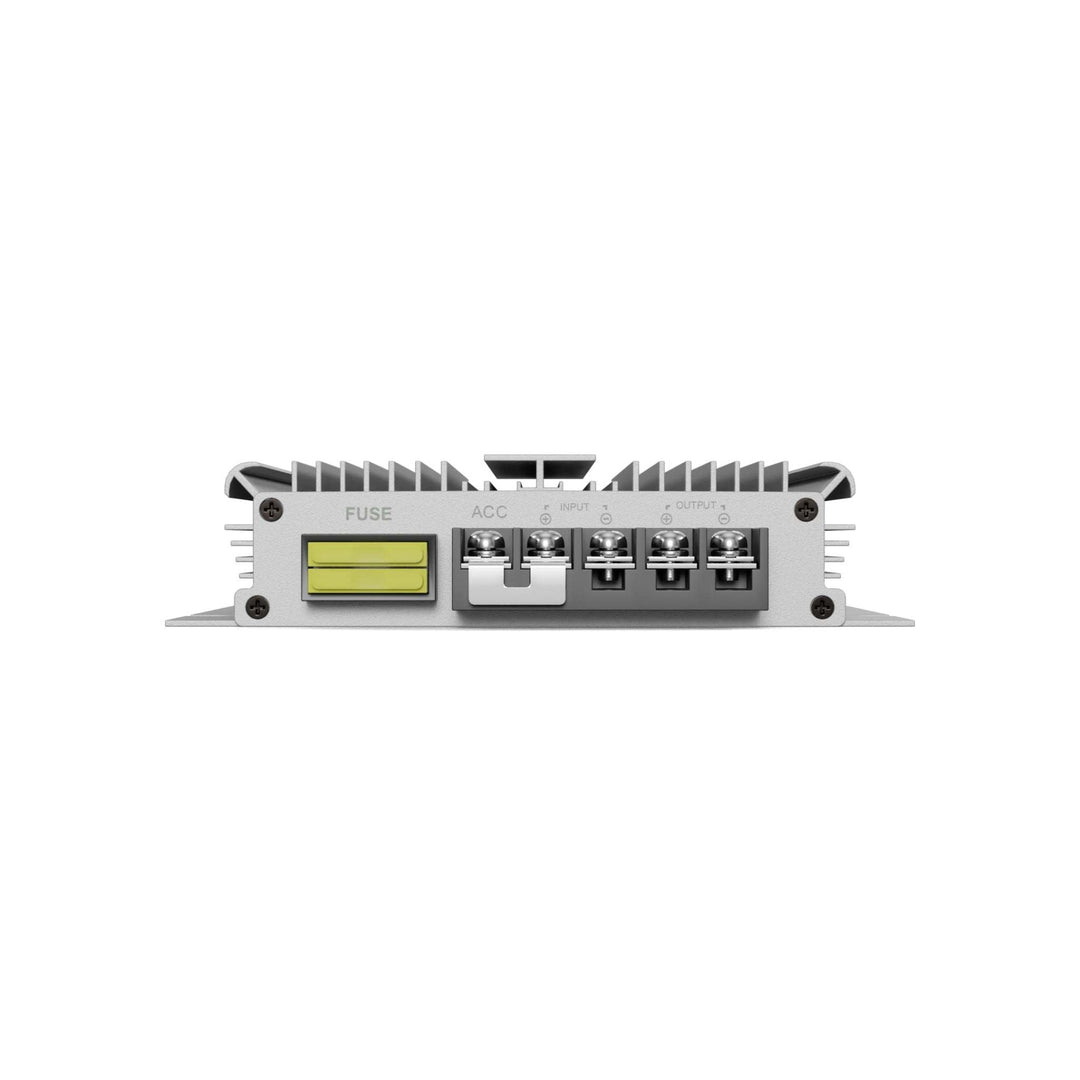

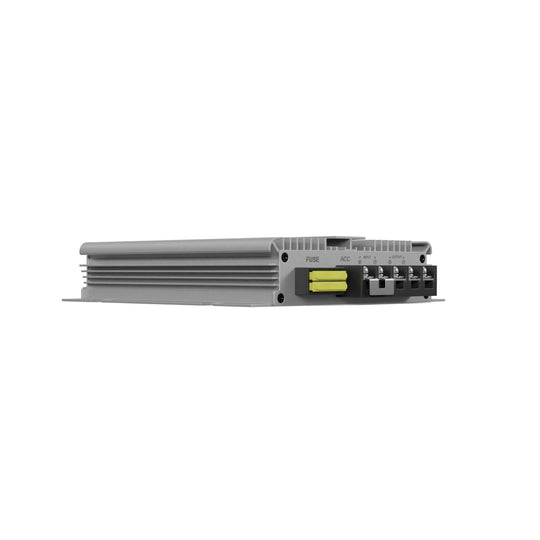

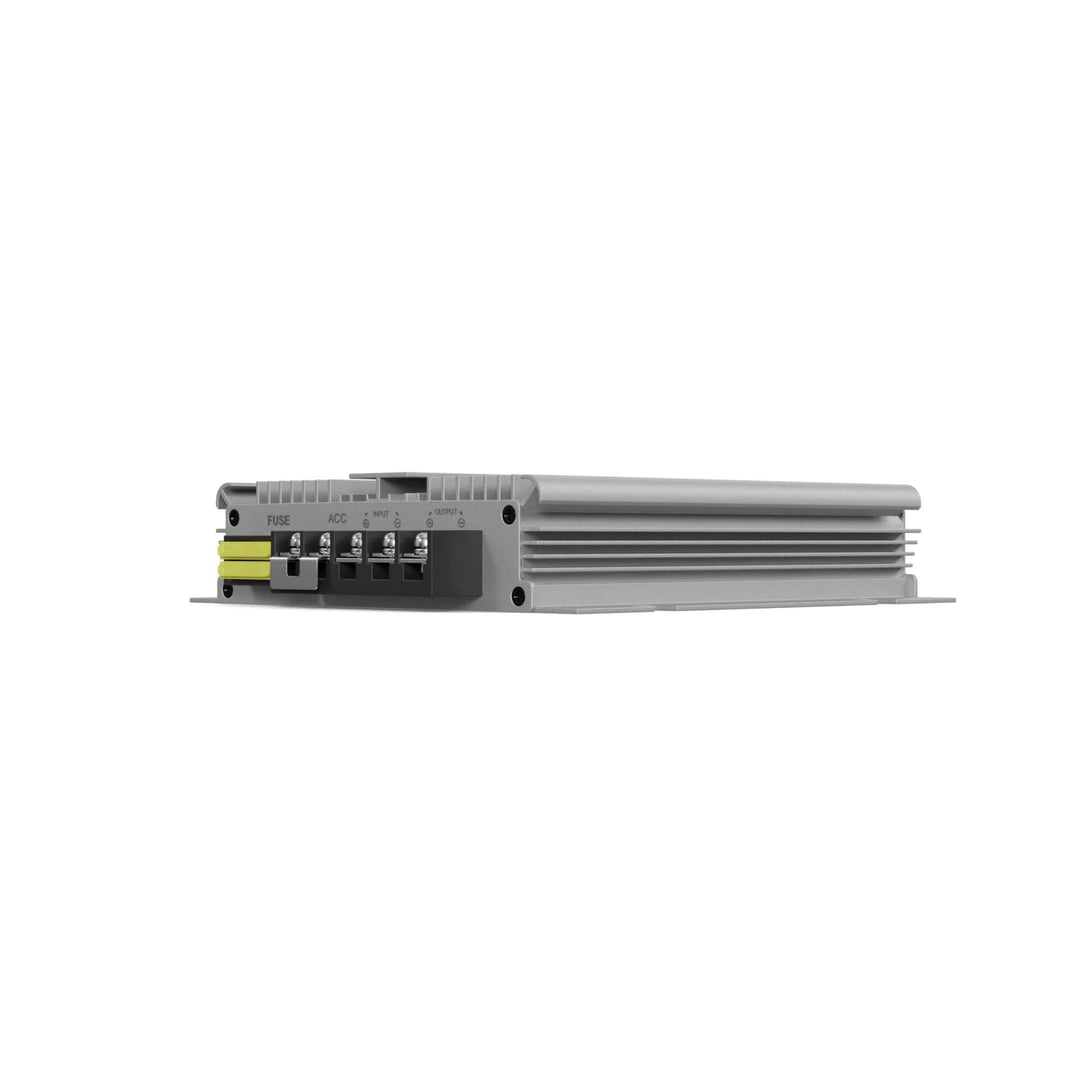

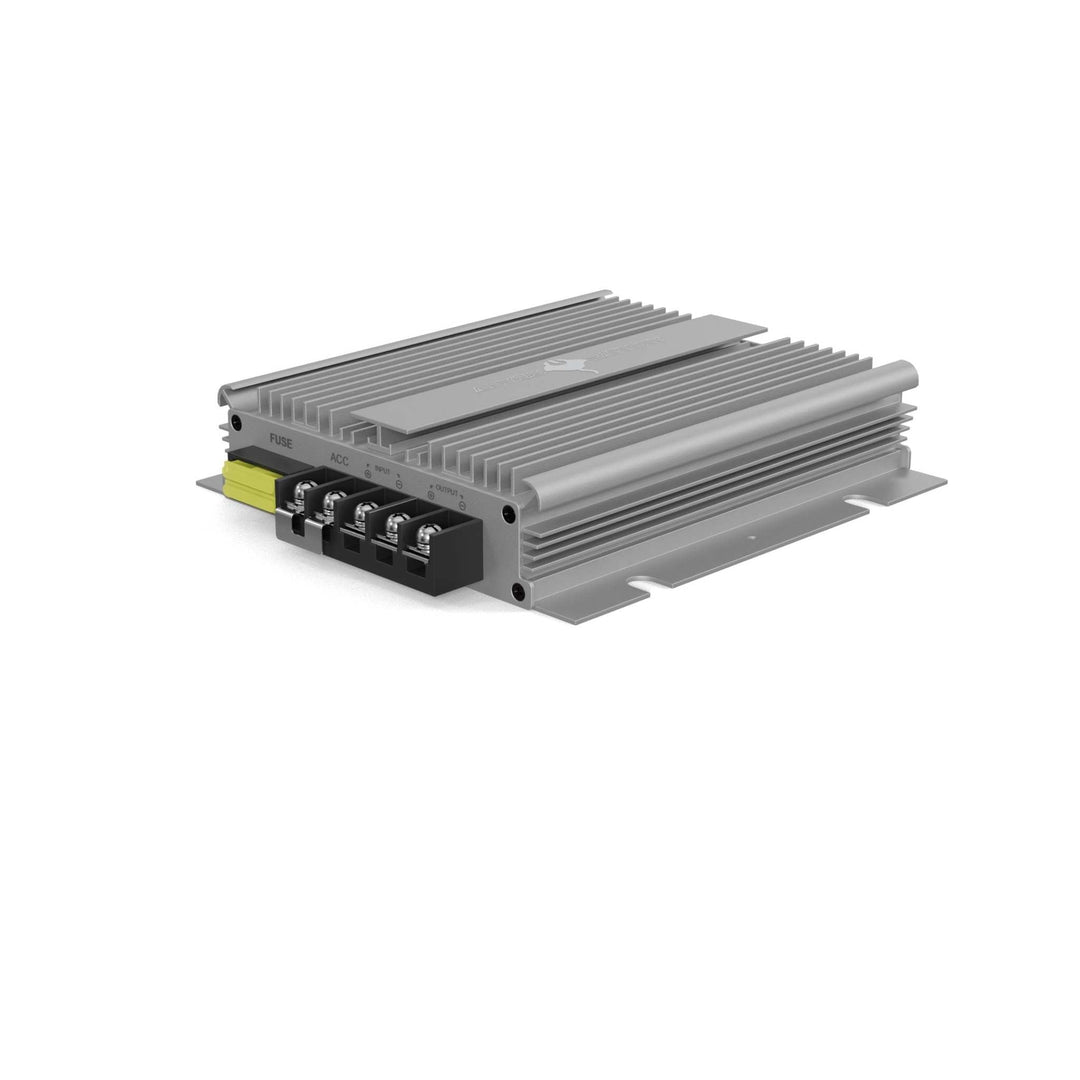

ABYSS® 600W Input to 12v 50A DC Step down converter
AB-DC-SD
- In stock, ready to ship
ABYC Compliant
2-year free replacement warranty
IP67 Water Rating
Ignition Protection
Power up on the go with the ABYSS® 600W to 12-Volt Step down On-Board converter, seamlessly stepping down 60-72V power to 12Volts to use for your 36V-48V golf cart battery. Even while on the links, our onboard inverters keep your adventures going, ensuring you never miss a beat.
- Steps down power from 72V-36-Volt DC to 12-Volt DC for 36V/48V golf cart batteries
- Seamless integration
- Smart inverter technology
- Ideal onboard golf cart system
Note: Please see Product Manual for proper installation to ensure that your experience with our product is both efficient and secure. Safety and proper functioning of our products is our utmost priority, which is why we strongly recommend installation from one of our authorized dealers or acquaint yourself thoroughly with our detailed product manual before proceeding with the installation process. Adherence to these guidelines is paramount.
ON-BOARD Battery Chargers
|
Product name |
3-Bank 12v/24v marine charger |
3-BANK 12v/36v MARINE CHARGER |
4-BANK 12V MARINE CHARGER |
4-BANK 12V/36V MARINE CHARGER |
36V Alternator CHARGER | 30V-90V Input to 12v 50A DC Step down converter | 36V 10A HIGH- PRECISION CHARGER | 36V 20A HIGH- PRECISION CHARGER | 24V 10A HIGH- PRECISION CHARGER | 24V 20A HIGH- PRECISION CHARGER | 24V ALTERNATOR CHARGER |
|
Model |
AB-CRG-12V24V-3B |
AB-CRG-12V36V-3B |
AB-CRG-12V-4B |
AB-CRG-12V/36V-4B |
AB-36V-DC | AB-DC-SD | AB-CRG-36V10A | AB-CRG-36V20A | AB-CRG-24V10A | AB-CRG-24V20A | AB-24V-DC |
|
Voltage |
12V/24V |
12V/36V | 12V | 12V/36V | 36V | 30V-90V | 36V | 36V | 24V | 24V | 24V |
|
Output |
2x12V/10A +24V/10A |
2x12V/10A +36V/10A | 4x12V/10A |
3x12V/10A +36V/10A |
43.8V/10A | 12V/50A DC | 36V/10A DC | 36V/20A | 24V/10A | 24V/20A | 24V |
|
Product Size
|
11.9" x 9.6" x 3.8" |
14.2" x 9.6" x 3.8" 361 x 245 x 99mm |
11.9" x 9.6" x 3.8" 304 x 245 x 99mm |
16.6" x 9.6" x 3.8" 423 x 245 x 99mm |
6" x 5" x 2" 150 x 130 x 48mm |
6" x 5" x 2" 150 x 130 x 48mm |
7.5" x 5" x 2.75" 190 x 127 x 70mm |
10.5" x 6" x 3" 267 x 152 x 76mm |
7.5" x 5" x 2.5" 190 x 127 x 63mm |
7.75" x 5" x 3" 197 x 127 x 76mm |
4.75" x 3.25" x 1.25" 121 x 82 x 32mm |
| Weight | 16.5 lbs (7.5 kg) |
19 lbs (8.6 kg) | 17 lbs (7.7 kg) | 26.8 lbs (12.1 kg) | 3.1 lbs (1.4 kg) | 3.1 lbs (1.4 kg) | 3.5 lbs (1.6 kg) | 7.1 lbs (3.2 kg) | 3.3 lbs (1.5 kg) | 3.3 lbs (1.5 kg) | .95 lbs (.43 kg) |
| Lead Length | 6' (72 in.) (183 cm) |
6' (72 in.) (183 cm) |
6' (72 in.)(183 cm) | 6' (72 in.) (183 cm) |
7 in. (17.8 cm) |
N/A | 4' (48 in.)(122 cm) |
4' (48 in.)(122 cm) | 3' (36 in.) (91.4 cm) |
3' (36 in.) (91.4 cm) | 7 in. (17.8 cm) |
|
Charging Battery Type
|
Two banks have MODE buttons to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM; The 3rd bank could charge 24V LiFePO4 Lithium Batteries |
Two banks have MODE buttons to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM; The 3rd bank could charge 36V LiFePO4 Lithium Batteries |
Each bank has one MODE button to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM |
Three banks have MODE buttons to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM; The 4th bank could charge 36V LiFePO4 Lithium Batteries | 36V LiFePO4 Batteries | 12V LiFePO4 Batteries | 36V LiFePO4 Batteries | 36V LiFePO4 Batteries | 24V LiFePO4 Batteries | 24V LiFePO4 Batteries | 24V LiFePO4 Batteries |
| FOR ALL CHARGERS (if applicable) |
|
|
LED Indicators |
Power & Battery Type & Charging Status LED Indicators |
|
Activate Function |
Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function) |
|
Full Cut-off Voltage |
14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery & 28.8V-29.4V for 24V Lithium Battery & 43.3V-44.2V for 36V Lithium Battery |
|
Cooling Type |
Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation |
|
Ingress Protection |
Filled with pure epoxy resin for high waterproof level IP67
|
|
Circuit Protection |
Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection
|
|
Working Temperature Range |
-10°C~40°C |
|
Nominal Working Temperature |
25°C |
|
Relative Humidity |
5%~95% |
