Lithium vs. AGM Trolling Motor Batteries: The Honest 10-Year Cost

If you run a 36V trolling motor offshore, you've already done the gut-check at the register: a set of three Group 31 AGMs rings up cheap, and a single lithium pack makes you swallow hard.

We're not going to tell you the upfront prices are close. They aren't. What we're going to do — captain to captain — is run the real ten-year math on a 36V setup, because the sticker price is the one number that lies to you.

The setup we're actually comparing

Most "lithium vs. AGM" articles run the numbers on a single 12V 100Ah battery. That's not your boat. If you're fishing a center console with a 36V trolling motor, your AGM setup is three Group 31 batteries wired in series — roughly 180–200 lbs sitting on your bow, three sets of terminals to corrode, and a usable depth of discharge you don't actually get to use.

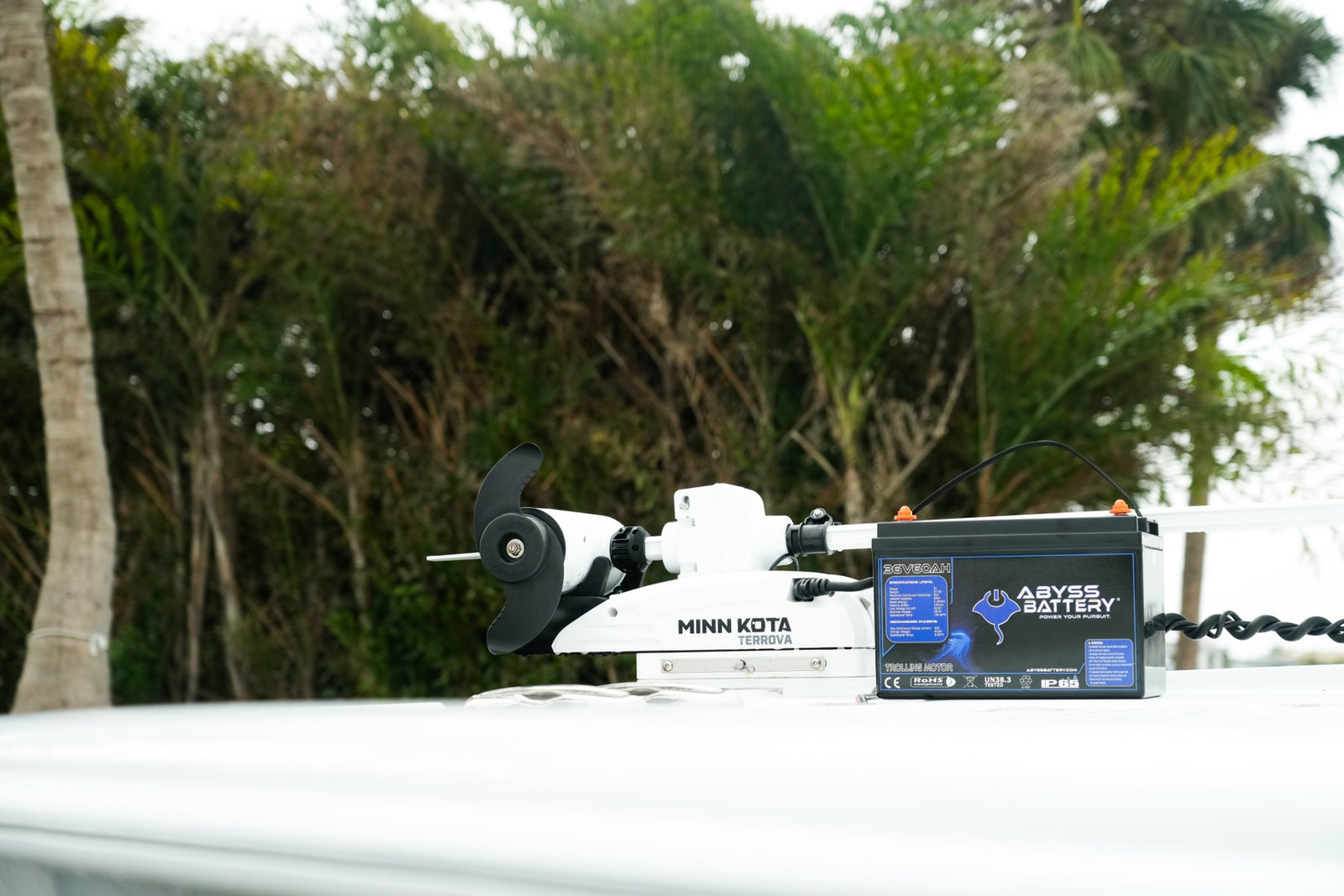

So that's the comparison we'll make: three Group 31 AGMs versus one ABYSS 36V lithium that drops into the same footprint.

Upfront cost: AGM wins, no argument

Three quality Group 31 AGMs run somewhere around $400 each — call it $1,200 for the set. The ABYSS 36V lithium is $1,999.99, so it costs more on day one — there's no spin to put on it. Lithium uses more expensive cells, a battery management system, and marine-grade construction that AGM simply doesn't have. But that day-one gap is only about $800 — and as you'll see, it disappears the first time those AGMs need replacing.

If you buy a boat battery the way you buy a tank of gas — cheapest thing that runs today — stop reading, buy the AGMs, and go fish. This article is for the captain who keeps the boat.

Where the AGM math falls apart: cycle life

Here's the number nobody puts on the shelf tag. An AGM battery is rated for roughly 400–500 charge cycles to a safe depth of discharge. A quality LiFePO4 pack is rated for 3,000+ cycles — and ABYSS cells are spec'd above that.

Run the trips. If you fish two or three times a week in season, you'll cycle a trolling motor battery 100–150 times a year. Your AGMs are tired in two to three seasons. The lithium is barely warmed up — you're looking at 8–10 years before it's anywhere near its rated end.

So the honest comparison isn't one set of AGMs against one lithium. It's three or four sets of AGMs — bought, hauled, and disposed of over a decade — against one lithium pack.

The 10-year cost, side by side

Read that table again. Over ten years of keeping a 36V motor running, the AGMs cost you more — somewhere around $3,600 to $4,800 in batteries you buy, haul, and throw away three or four times over. The ABYSS lithium is $1,999.99, once. This isn't lithium "closing the gap." On a 36V offshore setup, lithium is the cheaper battery over the life of the boat — and that's before we talk about everything else.

It was never just about money

Cost is the argument that gets people in the door. It's not the reason captains actually switch. Here's what the spreadsheet doesn't capture:

Weight. Pulling 130+ lbs off the bow changes how the boat sits, how it poles, and how it rides. On a flats boat or a bay boat, that's not a luxury — it's hull performance.

Flat voltage. AGM voltage sags as it drains, so your motor loses thrust through the afternoon. Lithium holds voltage nearly flat to the bottom of the charge. The last hour of fishing has the same push as the first.

Usable capacity. Drain an AGM past ~50% regularly and you cook it. A 100Ah AGM is really a 50Ah battery you're allowed to use. Lithium gives you 90%+ — so a smaller-rated lithium often out-runs a bigger-rated AGM.

One battery, not three. One case. One set of terminals. One thing to maintain, one thing to corrode, one thing to install. On saltwater, every connection you eliminate is a failure point you eliminate.

"But is lithium worth it for how I fish?"

Straight answer: if you fish hard and keep your boat, yes. If you splash twice a year, a good AGM will serve you fine and you don't need us.

The captains who win with lithium are the ones putting cycles on the battery — guides, tournament anglers, anybody on the water most weekends. The more you fish, the faster lithium pays for itself, because every cycle is a cycle you didn'tspend killing an AGM.

What to look for if you do switch

Not all lithium is equal, and the marketplace is full of repackaged cells with a sticker on them. Before you buy:

• Grade-A LiFePO4 cells — not recycled or B-grade.
• A real BMS with short-circuit, over-discharge, and reverse-polarity protection.
• True waterproof rating — IP67 with sealed structural construction, not glue-sealed seams that fail offshore.
• Cold-weather handling if you fish shoulder seasons — internal heating, not a strap-on blanket.
• A warranty that matches the lifespan claim. A 10-year battery backed by a 1-year warranty is telling on itself.

Every ABYSS 36V lithium is built to that bar — Grade-A cells, marine-grade BMS, true IP67, and a 5-year free replacement warranty, with ReCharge+ extending it further.

The bottom line

AGM wins the day you buy it. Lithium wins every day after. If you're going to keep the boat and you fish enough to put cycles on a battery, the real question isn't "can I afford lithium" — it's "why would I pay more, over ten years, to haul twice the weight and run out of thrust by mid-afternoon?"

Power your pursuit. Shop ABYSS 36V trolling motor batteries →

FAQ'S

How many AGM batteries does one 36V lithium replace? Three. A single 36V lithium replaces three 12V Group 31 AGM or lead-acid batteries wired in series — same job, one case, a fraction of the weight.

Is a lithium trolling motor battery worth the money? For anglers who fish regularly and keep their boat, yes. Lithium's 3,000+ cycle life means one pack outlasts three to four sets of AGMs, which closes the cost gap over 8–10 years — and you gain weight savings, flat voltage, and far more usable capacity along the way.

How long does a lithium trolling motor battery last? A quality LiFePO4 pack is rated for 3,000+ charge cycles, which works out to roughly 8–10 years of regular fishing — versus 2–3 years for AGM under the same use.

Can I use my AGM charger on a lithium battery? Only if it has a dedicated lithium profile. Many lithium-compatible chargers exist, but using a standard lead-acid charger can undercharge or stress the pack. Match the charger to the battery.

Will a lithium battery survive saltwater? A properly built one will. Look for true IP67 waterproofing, sealed structural construction (not glue-sealed seams), and anti-corrosion, salt-spray-tested components. That's the difference between a battery built for offshore and one that just happens to be on a boat.
