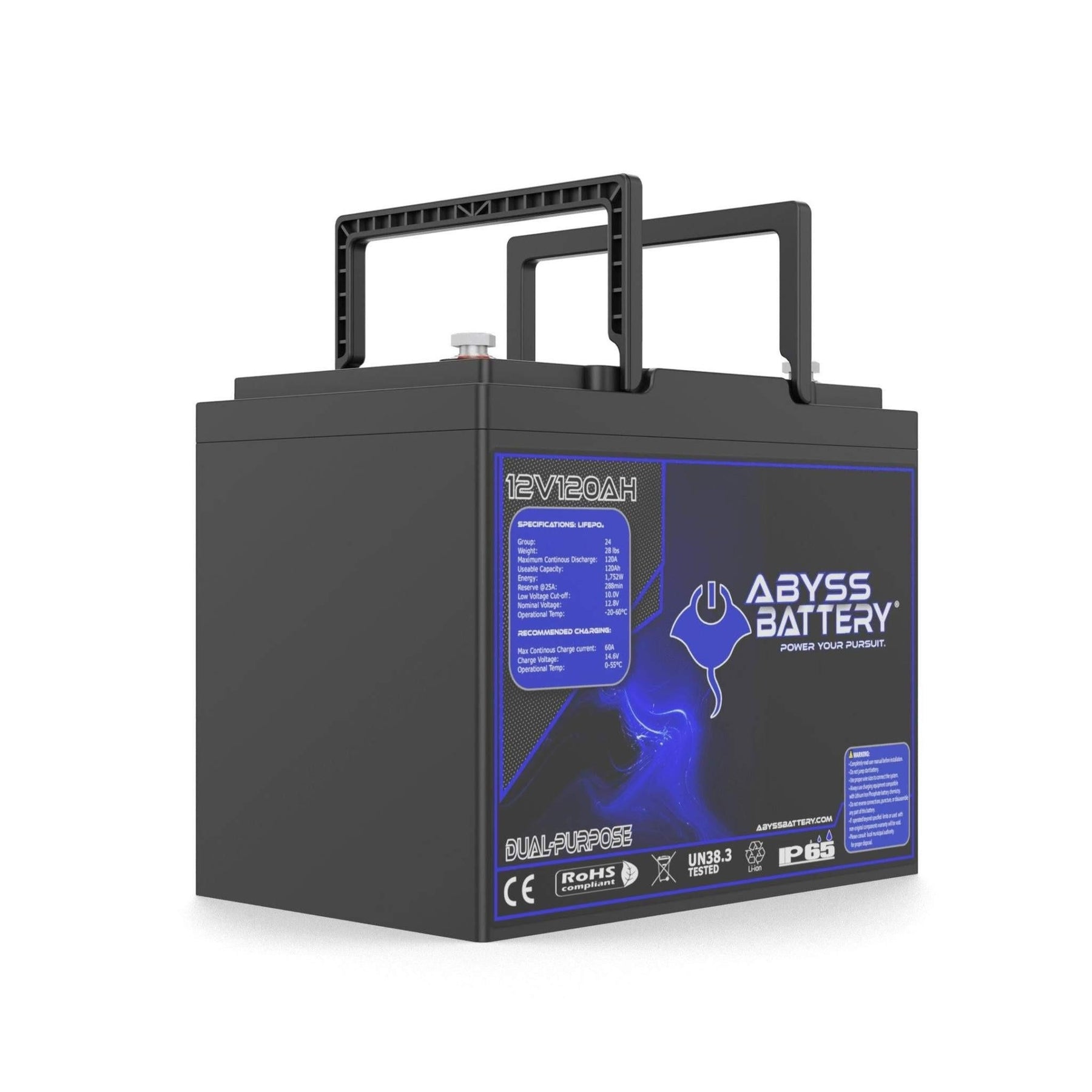

ABYSS® 12V 120Ah Dual Purpose Lithium Marine Battery
AB-12V120-BT
- In stock, ready to ship
ABYC® Compliant
5-year free replacement warranty
Certified for Mercury Marine Outboards
UN/DOT 38.3 Hazmat Approved
More Power. More Safety. Same Compact Footprint.
The new ABYSS® 12V 120Ah Dual Purpose Lithium Marine Battery redefines what a Group 24 battery can do. Built for anglers, adventurers, and boat builders who demand the best, this next-generation LiFePO4 powerhouse delivers more amp hours, higher efficiency, and smarter safety features — all in the same compact Group 24 size.
With an incredible 1200A peak CCA, it fires up outboards, generators, and high-draw equipment with ease — while providing the deep-cycle endurance needed to run your fish finders, GPS, Seakeepers, chill plates, downriggers, and full audio systems all day long.
Built on years of marine engineering and field-tested reliability, the new 120Ah model now includes: an emergency power reserve push-start that delivers a last-line backup to get you home when voltage runs low. An integrated vent system improves heat dissipation and protects against internal short circuits, while true IP67 waterproof construction seals out saltwater, rain, and vibration. With higher amp-hour density than AGM batteries in the same Group 24 footprint, you get more usable power in less space—plus full parallel and series compatibility to scale your system effortlessly.
Whether you’re powering critical onboard electronics or starting a twin-engine offshore setup, the ABYSS® 12V 120Ah delivers the confidence, endurance, and performance that define the ABYSS® legacy.
Lightweight. Reliable. Intelligent. Power Your Pursuit™.
12V 120Ah Battery Datasheet
| Technical Specifications | Details |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 120Ah |
| Parallel Connection | Maximum 4 units |
| Serial Connection | Maximum 4 units |
| Bluetooth Management System (BMS) | 4S150A (Available on Android/iOS) |
| Charge Voltage | 14.4±0.2V |
| Standard Charge Current | 40A |
| Fast Charge Current | 100A |
| Max. Continuous Discharge Current | 200A |
| Peak Discharge Current | 1200A (CCA) 300ms |
| Discharge Cut-off Voltage | 12V (Emergency Start Power Reserve) |
| Cycle Life | 4000 cycles @ 95% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Operating Charge Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | 0°C to 45°C (32°F to 113°F) |
Physical Specifications
- Dimensions: 10.24" x 6.62" x 8.23" in
- 260×168×209mm (Group 24)
- Approximate Weight: 24.27 lbs (11.01 Kg)
- Terminal Type: M8
- Case Color/Material: Black Plastic case (ABS)
- IP Rating: IP67
- Cell Type: Cylindrical LiFePO4 cell (EVE 122Ah) UL Cell
- Cell Holder: Yes
Additional Information
- The battery features Bluetooth connectivity, allowing for monitoring via Android and iOS devices.
- Compliant with international standards including UL 1642, IEC62133, IEC62619, CE, UN38.3, and ROHS.
- Implemented strict quality control measures ensure reliability and consistency.
⚡ Emergency Power Reserve Button – Built-in push-start backup ensures you can always start your engines and make it home, even when voltage is low.
🌬️ Integrated Vent System – Promotes better heat dissipation and prevents short circuits for improved safety and durability.
🌊 True IP67 Waterproof Construction – Fully sealed against spray, salt, and vibration for ultimate reliability offshore.
📶 Bluetooth® Connectivity – Monitor battery health, voltage, state of charge, and diagnostics wirelessly through the New ABYSS® Battery Pro App.
🔋 High-Density LiFePO4 Grade A Cells – Lighter, more powerful, and capable of 5,000+ charge cycles for long-term performance.
🔁 Alternator-Ready Charging – Accepts charge directly from your boat’s engine without additional hardware or converters.
All Abyss Batteries meet and exceed The American Boat & Yacht Council (ABYC) standard for lithium ion batteries. The ABYC council is an organization that develops voluntary global safety standards for the design, construction, maintenance, and repair of recreational boats.
ISO 14001:2004 Environmental Management System
Abyss Battery®, Inc manufacturing process is compliant and licensed on a international level by TÜV Rheinland for Functional Safety as a result of exposure to harsh marine environments such as vibration, impact, ignition protection, water ingress and salt spray corrosion common on pleasure craft and boats. TÜV Rheinland stands for safety and quality in virtually all areas of business and life. TÜV Rheinland’s highly qualified experts test technical systems and products around the world, support innovations in technology and business, train people in numerous professions and certify management systems according to international standards. In doing so, the independent experts generate trust in products as well as processes across global value-adding chains and the flow of commodities. Since 2006, TÜV Rheinland has been a member of the United Nations Global Compact to promote sustainability and combat corruption.
UN/DOT 38.3: Lithium Battery Transportation
All Abyss Battery®, Inc. Lithium Batteries are required to pass section 38.3 of the UN Manual of Tests and Criteria, to ensure the safety of using products for our end users and for shipping purposes. We are proud of our investment to ensure our products have been UN38.3 certified.
T1 – Altitude Simulation
This is low pressure testing that simulates unpressurized airplane space (cargo area) at 15,000 meter altitude. After storing batteries at 11.6kPa for >6 hours, these criteria shall be met: no mass loss, leaking, venting, disassembly, rupture or fire, and voltage within 10% of pre-test voltage.
T2 – Thermal Test
This test covers changes in temperature extremes from -40°C to +75°C. Batteries are stored for 6 hours at -40°C (12 hours for large cells/batteries), then 6 hours at +75°C (12 hours for large cells/batteries), for a total of 10 cycles. Testing may be performed in a single chamber or thermal shock chamber, but less than 30-minute transitions shall be used.
T3 – Vibration
This test simulates vibration during transportation. Test is a Sine Sweep: 7Hz – 200Hz – 7Hz in 15 Minutes; 12 Sweeps (3 hours); 3 mutually perpendicular axes.
T4 – Shock
This test also simulates vibration during transportation. Test is a Half-Sine pulse: 150G/6ms for small cells/batteries; 50G/11ms for large cells/batteries; 3 pulses per direction; 6 directions (+/-z, +/-x, +/-y). Same pass criteria as T1.
T5 – External Short Circuit
This test simulates an external short to the terminals of the cell or battery. At temperature of +55°C, apply short circuit (<0.1ohm) across terminals. Maintain at least an hour after sample temperature returns to +55 +/-2°C. Pass criteria are: Case temperature does not exceed +170°C and no disassembly, rupture, or fire within 6 hours of test. Fuse, current limiting circuit, and venting mechanism activation are allowable.
T6 – Impact
This test is only applicable to primary and secondary cells. For cylindrical cells >20mm diameter, it simulates impact to case of cell. For cylindrical cells <20mm diameter and all other cell constructions, it simulates crushing of a cell. Pass criteria for any type is: Case temperature does not exceed +170°C & no disassembly or fire within 6 hours of test.
T7 – Overcharge
This test is for secondary or rechargeable batteries only. It simulates an overcharge condition on a rechargeable battery: 2x the manufacturer’s recommended charge current for 24 hours. Then battery shall be monitored for 7 days for fire or disassembly.
T8 – Forced Discharge
This testing simulates a forced discharge condition for primary and secondary cells only.
Click the links below to view and download owner's manuals and instructions for your Abyss Battery® products.
MULTI BANK CHARGER USER MANUAL
A B Y S S B A T T E R Y ® · M A R I N E L I T H I U M
10-Year Transferable Premium Warranty
Effective August 1, 2026. Applies to purchases made on/after the effective date; prior purchases remain covered under warranty terms in effect at time of purchase.
0 1 —WARRANTY OVERVIEW
Abyss Battery, Inc. (“Abyss”) warrants its marine lithium batteries to be free from defects in materials and workmanship for a period of ten (10) years from the original date of purchase. If an Abyss battery fails due to a defect in materials or workmanship during the warranty period, Abyss will, at its sole discretion, repair the battery or replace it with a new or equivalent current-production model. This warranty is fully transferable to subsequent owners upon registration, subject to the conditions in Section 04.
PRODUCT COVERAGE TERM COVERAGE
* Marine lithium batteries (12V, 24V, 36V, 48V, 72V) - 10 years from original purchase: Repair or replacement for manufacturing defects, at Abyss’s option.
* Reel batteries & chargers 2-year replacement, then 35% off through year 5 for manufacturing defects.
0 2 — WHAT IS COVERED
* Defects in materials or workmanship that occur during normal, intended marine use.
* Repair of the affected battery, or replacement with a new or equivalent current-production model, at Abyss’s sole discretion.
* If the original model has been discontinued, Abyss will replace it with the current equivalent model of comparable voltage, capacity, and specification.
* A repaired or replacement battery assumes the remaining warranty term of the original battery.
* 24/7 priority phone and chat support with Abyss battery experts.
0 3 — ACTIVATION: REGISTRATION
* Registration is required for 10-year coverage. Register within 90 days of purchase at abyssbattery.com or through the Abyss Battery App, with proof of purchase and battery serial number.
* Unregistered batteries with an original purchase receipt remain covered under the standard Abyss 5-Year warranty plan.
* Batteries that are not registered and have no proof of purchase carry no warranty coverage.
* For batteries with connected features, keeping firmware reasonably up to date through the Abyss Battery App is a condition of coverage for firmware-related failures.
0 4 — TRANSFERABILITY
*This warranty transfers to a subsequent owner — including when the battery is sold with a boat — provided that:
- The transfer is registered online within 30 days of the sale;
- The new owner provides the battery serial number; and
- The original proof of purchase (or existing registration) is on file.
* There is no transfer fee. The warranty term is not extended by transfer; the new owner receives the balance of the
original 10-year term.
0 5 — EXCLUSIONS: WHAT IS NOT COVERED
*Damage from abuse, misuse, neglect, collision, fire, or submersion.
* Improper installation, improper charging, or use of charging equipment that does not fall within the specifications of a lithium charge profile or is not equipped with pulse wake up mode.
*Unauthorized modification, disassembly, tampering, or repair by anyone other than Abyss or its authorized service providers.
* Environmental damage, including flooding, extreme heat, freezing, or salt-water intrusion beyond rated protection.
* Normal wear, gradual capacity degradation within published cycle-life specifications, and cosmetic damage that does not affect performance.
* Loose or corroded terminals; jump-starting damage.
* Labor, removal, reinstallation, loss of use, towing, or other incidental costs.
* Batteries used in applications outside their published specifications, including non-marine commercial use.
0 6 — CLAIMS: HOW TO MAKE A CLAIM
* Contact Abyss support (phone, chat, or warranty@abyssbattery.com) with the serial number, proof of purchase or registration, and a description of the issue.
* Abyss will troubleshoot remotely first; many issues are resolved with firmware, charging, or configuration guidance.
* If a return is required, Abyss will issue an RMA with hazmat-compliant shipping instructions. Batteries must ship in original or hazmat-certified packaging via approved carriers.
* If a manufacturing defect is confirmed, Abyss covers return and replacement shipping. If no defect is found, the customer is responsible for shipping.
* Customers may optionally purchase a replacement up front to minimize downtime; a full credit is issued upon defect verification.
0 7 — TERMS & LIMITATIONS
This warranty applies under conditions of normal use. To the maximum extent permitted by law, Abyss disclaims all implied warranties beyond this written limited warranty and is not liable for incidental or consequential damages. Some states do not allow limitations on implied warranties or the exclusion of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights; you may also have other rights that vary by state.
